Tripp Lite, Surge Protector, 8 Outlet, 8FT Cord, 1440 Joule, 120V, 1800W, 15 Amp

MFG #: TLP808
ATECH #: TRPTLP808
UPC : 037332097439
Manufacturer : Tripp Lite
If you don't have an account, Become a Reseller!

Marketing Information

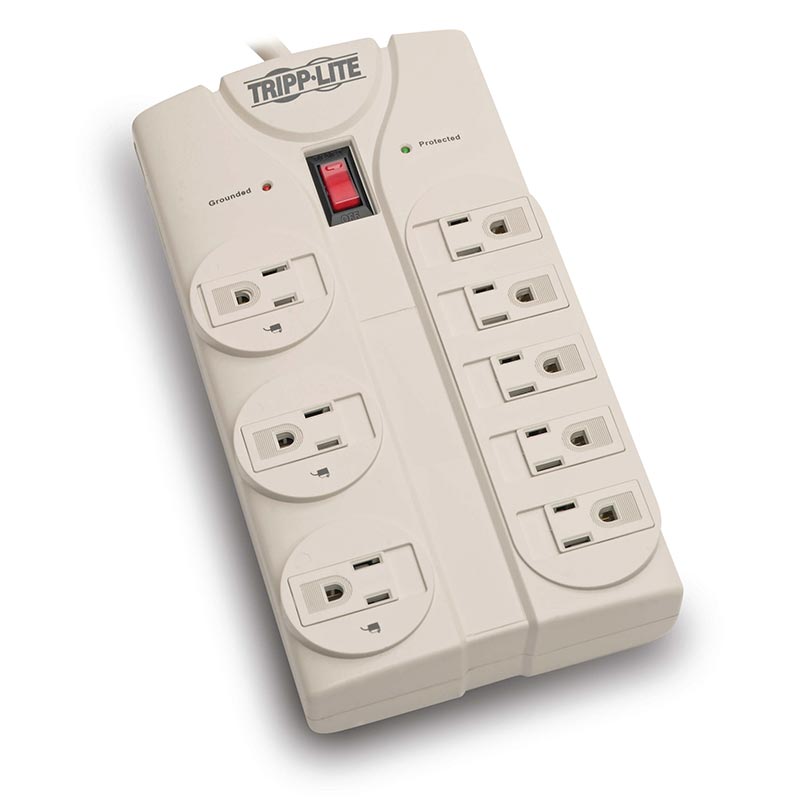

Perfect for your home or office workstation, the TLP808 Protect It!® 8-Outlet Surge Protector features a surge protection rating of 1440 joules to defend your sensitive electronic components against strong surges and spikes.

Because residential power outlets have three wires—hot line (H), neutral (N) and ground (G)—the TLP808 protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

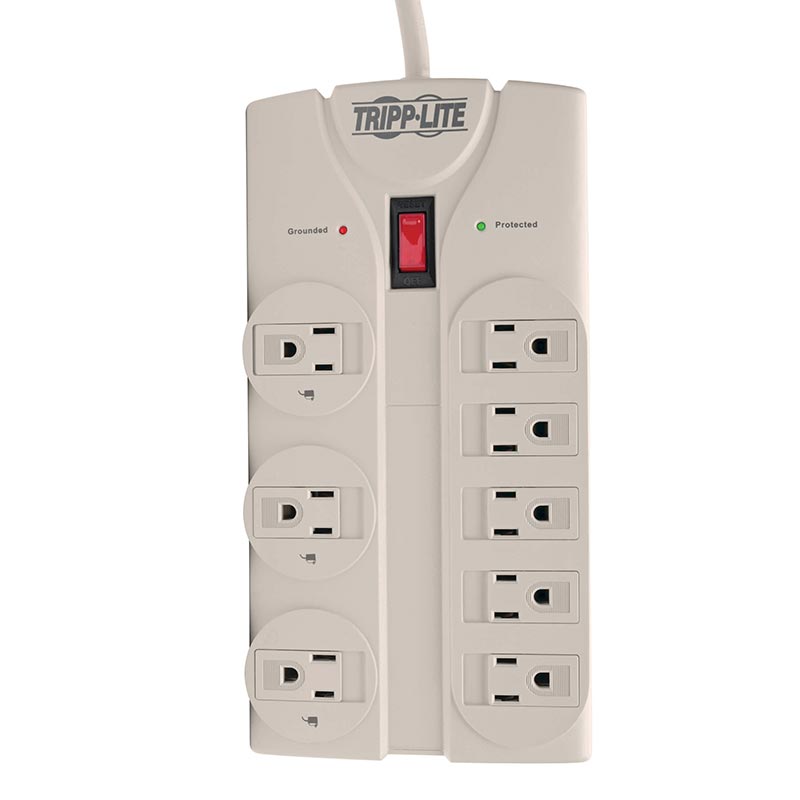

Your devices plug into eight NEMA 5-15R outlets, three of which are widely spaced to accept bulky transformers without blocking adjacent outlets. Sliding safety covers block accidental contact with unused outlets. An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The lighted on/off switch provides one-touch control over connected equipment. Diagnostic LEDs confirm your wall outlet is properly grounded and your connected equipment is protected.

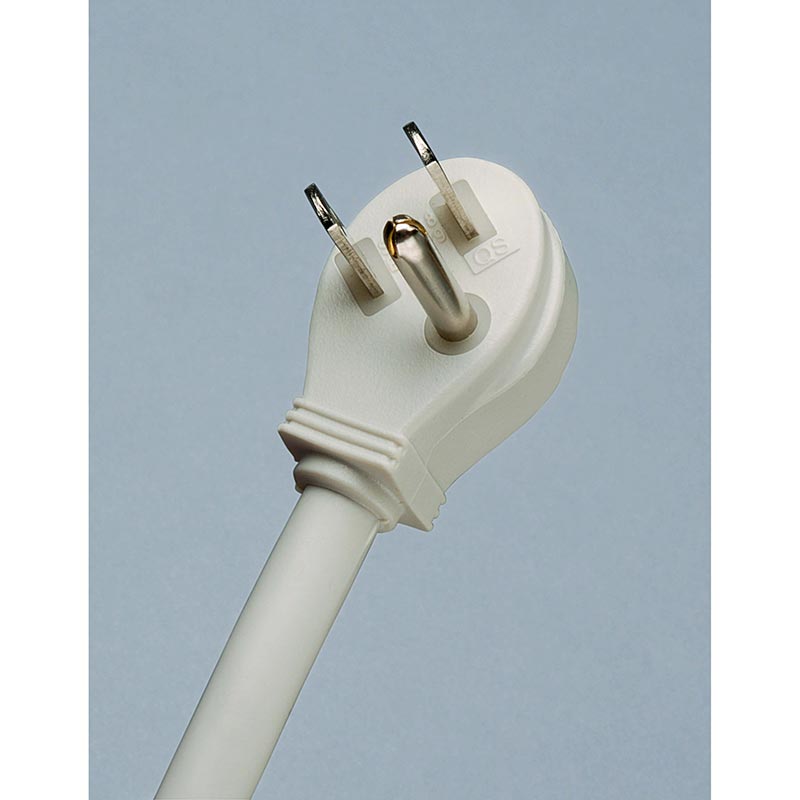

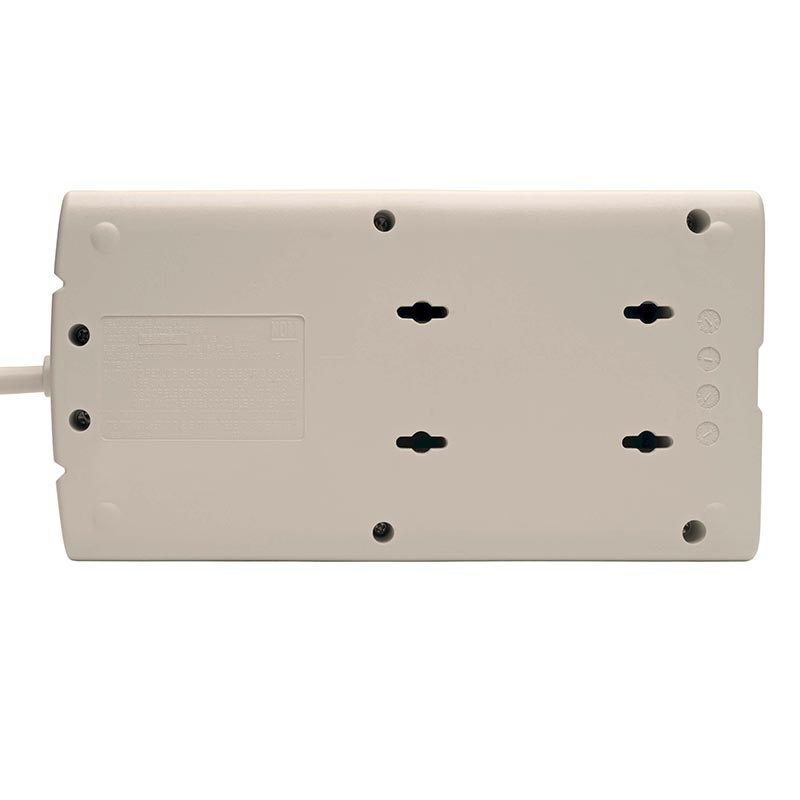

The eight-foot (2.4-meter) AC power cord allows the TLP808 to reach distant outlets, while its right-angle NEMA 5-15P plug allows furniture and equipment to be moved flush against the wall to save space in your workstation. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the light gray plastic housing.


Technical Specifications

  • UPC Code: 037332097439
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Plug Features: Right Angle (36D)
  • Input Cord Gauge Type: 14 gauge; SJT
  • Input Cord Gauge (AWG): 14
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 84000
  • Input Plug Type: NEMA 5-15P
  • Input Cord Details: SJT
  • Input Cord Length (ft.): 8
  • Right-Angle Plug: Yes
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (8) 5-15R
  • Circuit Breaker (amps): 15
  • Transformer Accommodation: (6) Yes
  • Outlet Orientation: Single row of 5, plus a second row of 3 for transformer accommodation
  • Outlet Safety Covers Detail: Includes built-in sliding outlet safety covers
  • Diagnostic LED(s): Yes
  • Switches: Combination AC circuit breaker and 2 position red illuminated on/off power switch
  • Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
  • AC Suppression Joule Rating: 1440
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
  • UL1449 Let Through Rating: 330 L-G, 400 L-N, 400 N-G
  • EMI / RFI Filtering : Up to 40 dB
  • Automatic Shut-Off: Yes
  • Network (Ethernet) Protection: No
  • Material of Construction: Plastic
  • Power Cord Color: Gray
  • Housing Color: Gray
  • Mounting Holes or Slots: Yes
  • Slot or Hole Mount Measurement (Center to Center): Distance between horizontal slots = 75 mm
  • Outlets Measurement (Center to Center): Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm
  • Receptacle Color: Gray
  • Shipping Dimensions (hwd / in.): 12.30 x 7.40 x 2.00
  • Shipping Weight (lbs.): 1.97
  • Unit Dimensions (hwd / in.): 4.860 x 9.550 x 1.510
  • Unit Weight (lbs.): 1.76
  • Input Cord Color: White
  • Product Certifications: CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed
  • Product Compliance: RoHS
  • Product Warranty Period (Worldwide): Lifetime limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $75,000 Ultimate Lifetime Insurance
Net Weight: 1.90 lbs
UOM: EACH
Product Type: Surge Protector, 8 Outlet, 8FT Cord
Country of Origin: CN
