Technical Specifications

• UPC Code: 037332177025
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 120V (110-125V)
• Input Cord Gauge Type: 14 gauge; SJT
• Input Cord Gauge (AWG): 14
• Voltage Compatibility (VAC): 120
• Maximum Surge Amps: 35500
• Input Plug Type: NEMA 5-15P
• Input Cord Details: SJT
• Input Cord Length (ft.): 8
• Right-Angle Plug: No
• Frequency Compatibility: 60 Hz
• Output Receptacles: (6) 5-15R
• Circuit Breaker (amps): 15

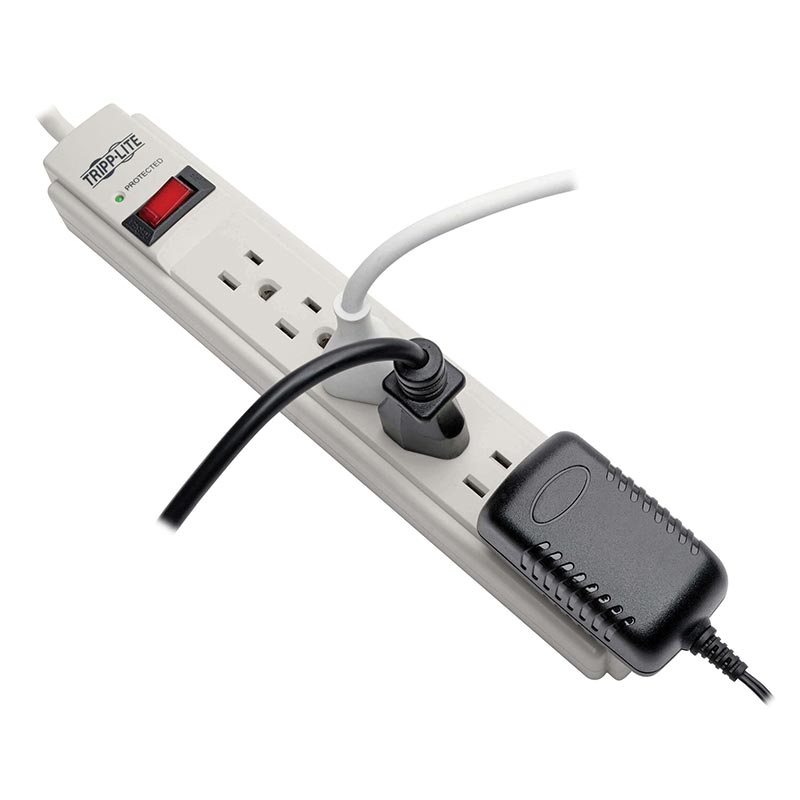

• Transformer Accommodation: (2) Yes
• Outlet Orientation: Single row
• Diagnostic LED(s): Yes
• Switches: Combination AC circuit breaker and 2 position red illuminated on/off power switch
• Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status
• AC Suppression Joule Rating: 990
• AC Suppression Response Time: < 1 ns
• Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
• UL1449 Let Through Rating: 500V
• EMI / RFI Filtering: Up to 20 dB
• Automatic Shut-Off: Yes
• Network (Ethernet) Protection: No
• Material of Construction: Plastic
• Power Cord Color: Light Gray
• Housing Color: Light Gray

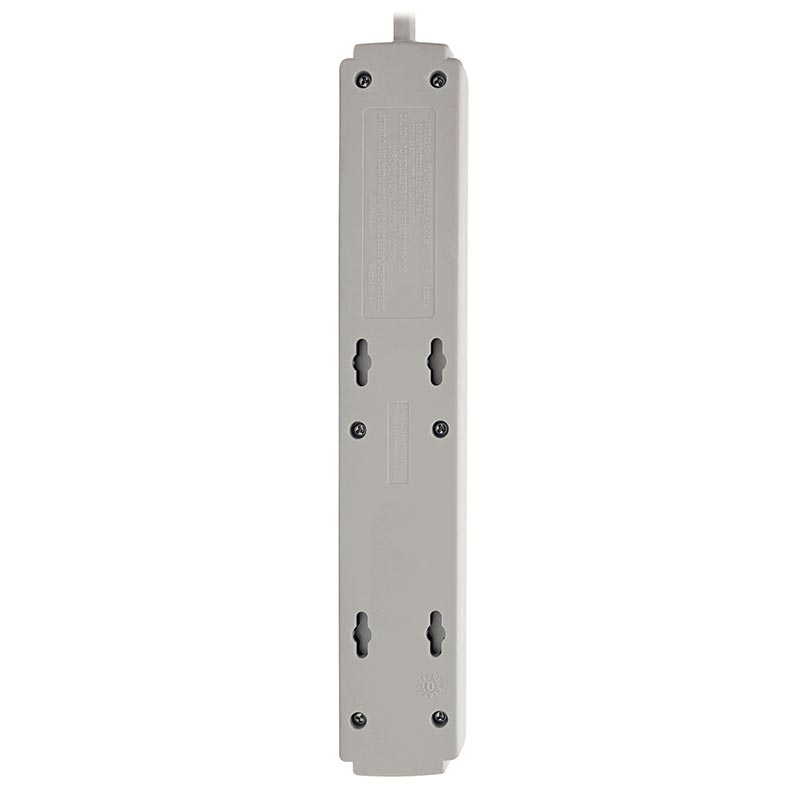

• Mounting Holes or Slots: Yes
• Slot or Hole Mount Measurement (Center to Center): Distance between slots = 101 mm; Distance between slot height = 28 mm
• Outlets Measurement (Center to Center): 28.5mm
• Receptacle Color: Gray
• Shipping Dimensions (hwd / in.): 12.20 x 1.80 x 5.90
• Shipping Weight (lbs.): 1.41
• Unit Dimensions (hwd / in.): 1.230 x 1.850 x 10.850
• Unit Weight (lbs.): 1.12
• Product Certifications: CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; UL 1449; UL 1363; UL Listed
• Product Compliance: RoHS
• Product Warranty Period (Worldwide): Lifetime limited warranty
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $20,000 Ultimate Lifetime Insurance
