Tripp Lite, Surge Protector, 10 Outlet, 8FT Cord, 2395 Joules, RJ11, 1 In/2 Out, Tel/Modem

MFG #: TLP1008TEL
ATECH #: TRPTLP1008TEL
UPC : 037332119063
Manufacturer : Tripp Lite
If you don't have an account, Become a Reseller!

Marketing Information

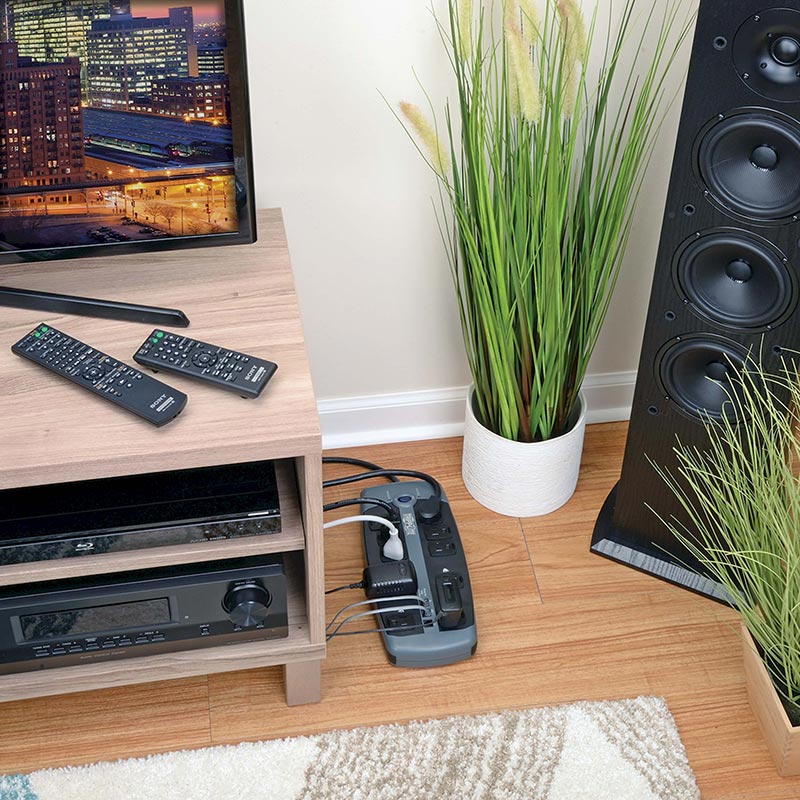

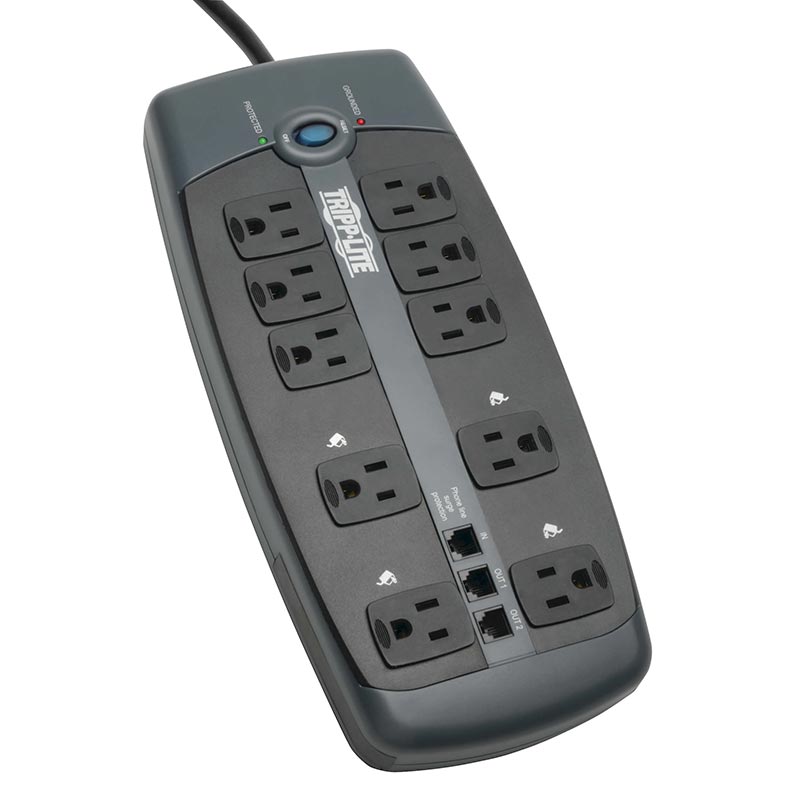

Perfect for your home or office workstation, the TLP1008TEL Protect It!® 10-Outlet Surge Protector features a surge protection rating of 2395 joules to defend your sensitive electronic components against even the strongest surges and spikes.

Because residential power outlets have three wires—hot line (H), neutral (N) and ground (G)—the TLP1008TEL protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

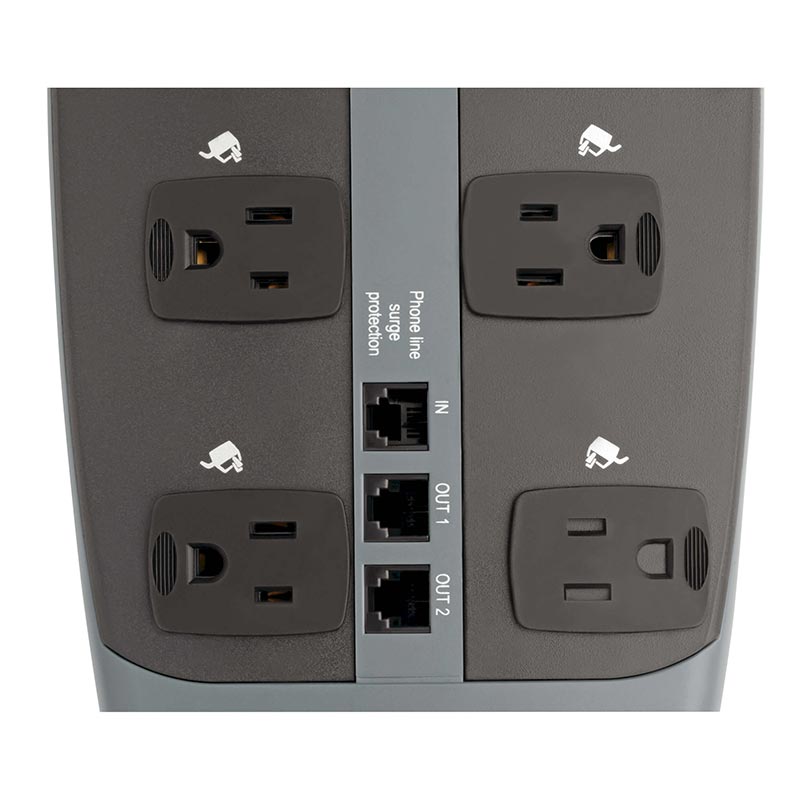

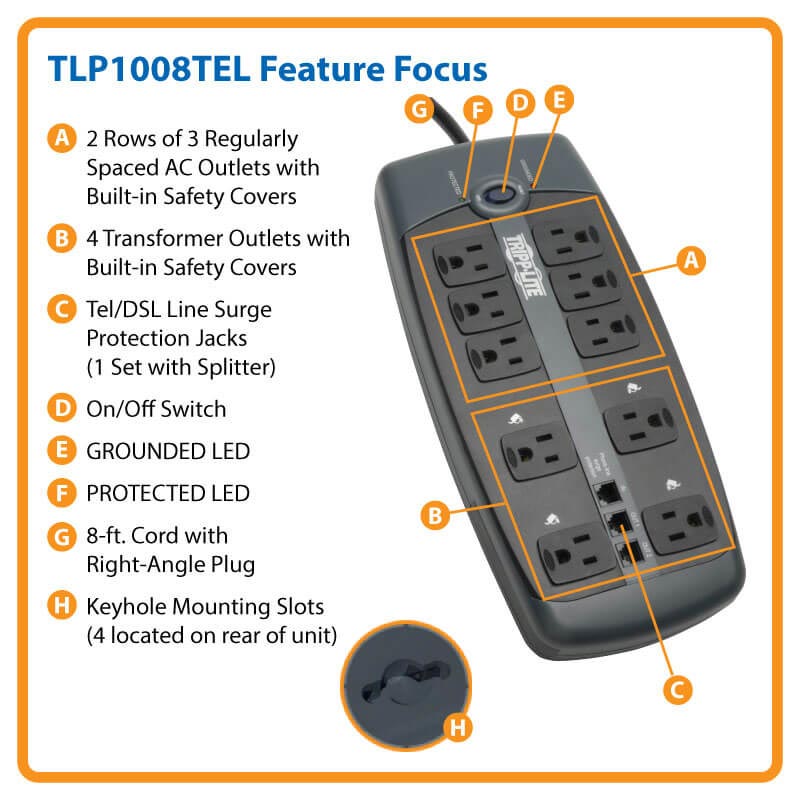

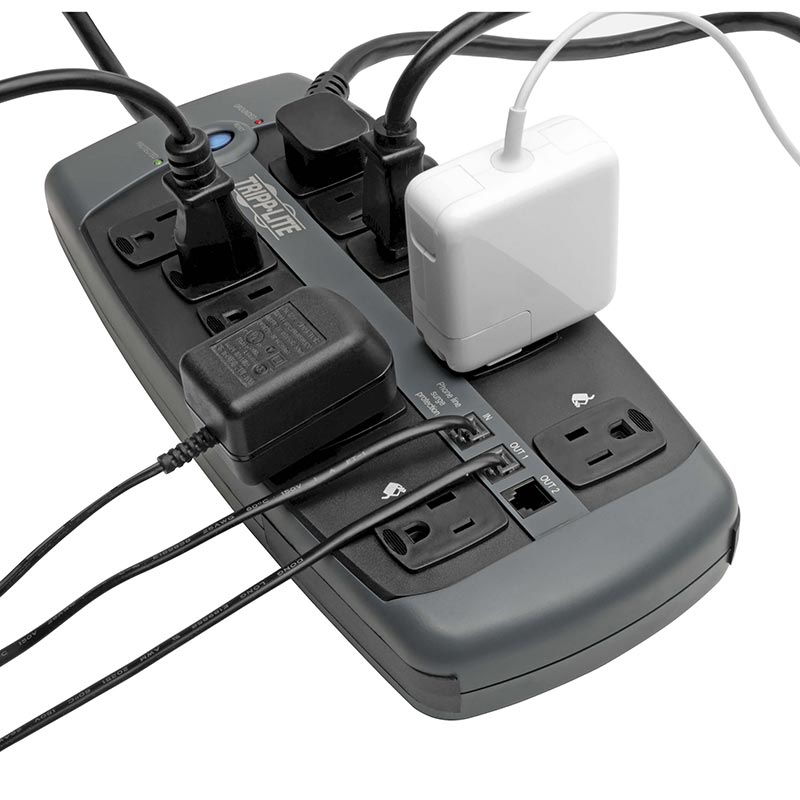

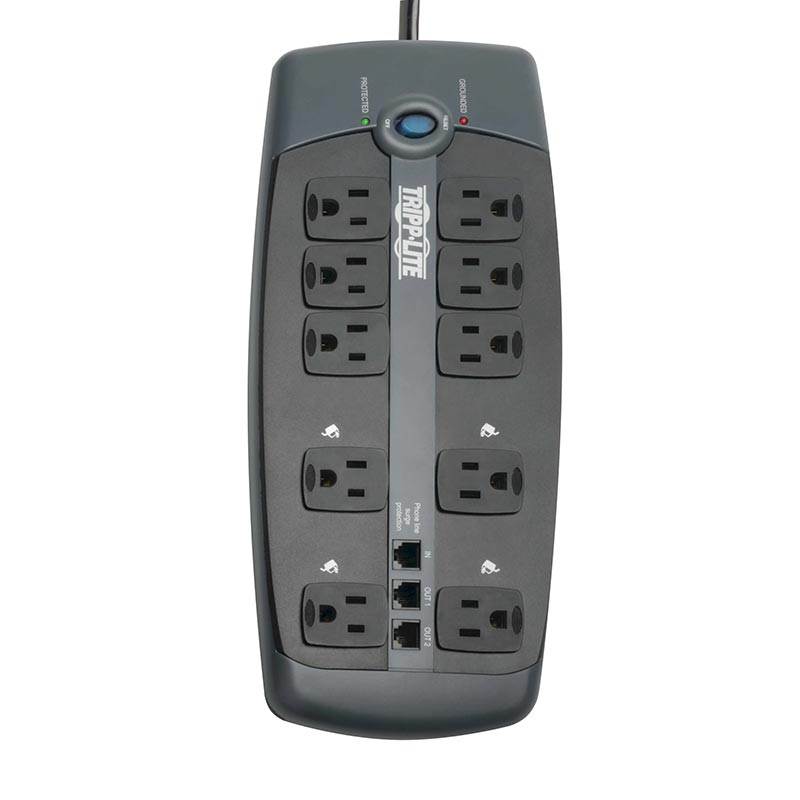

Your devices plug into 10 NEMA 5-15R outlets, four of which are widely spaced to accept bulky transformers without blocking adjacent outlets. Sliding safety covers block accidental contact with unused outlets. RJ11 jacks allow connection of telephone/fax/modem equipment, which is also protected from surges.

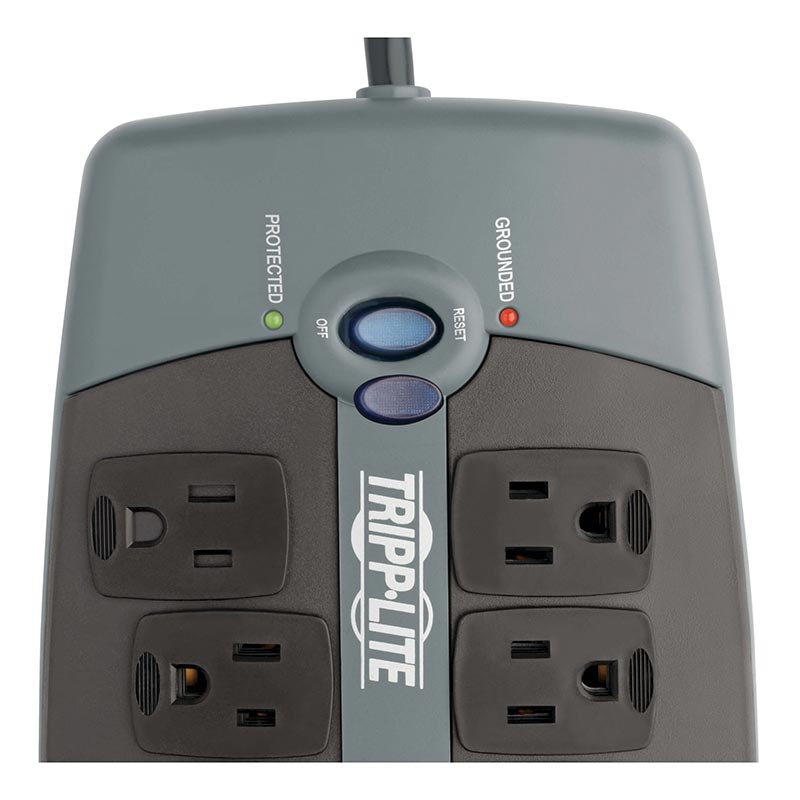

An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. Diagnostic LEDs confirm your wall outlet is properly grounded and your connected equipment is protected.

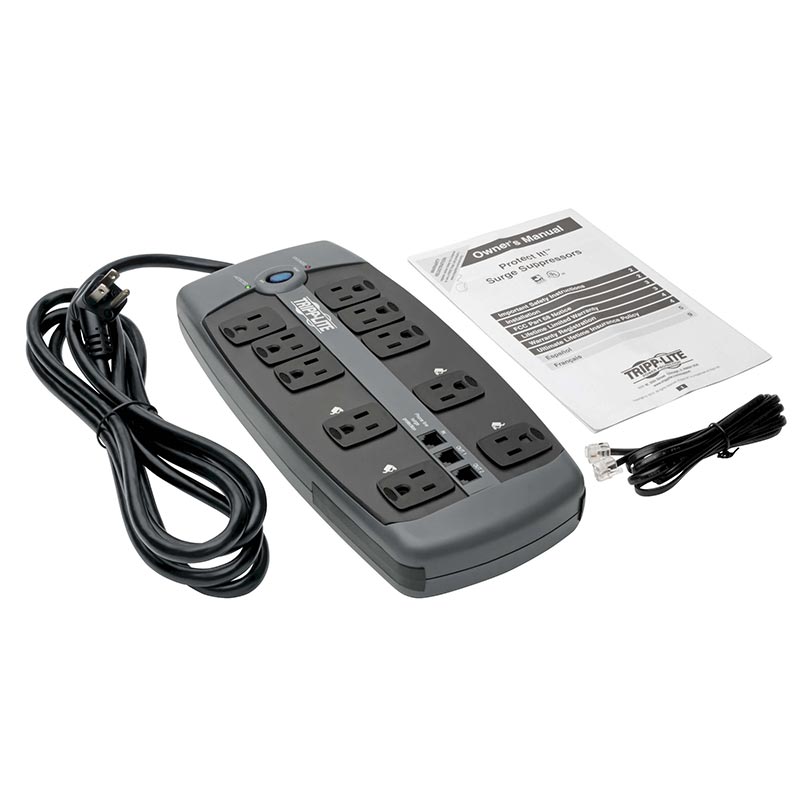

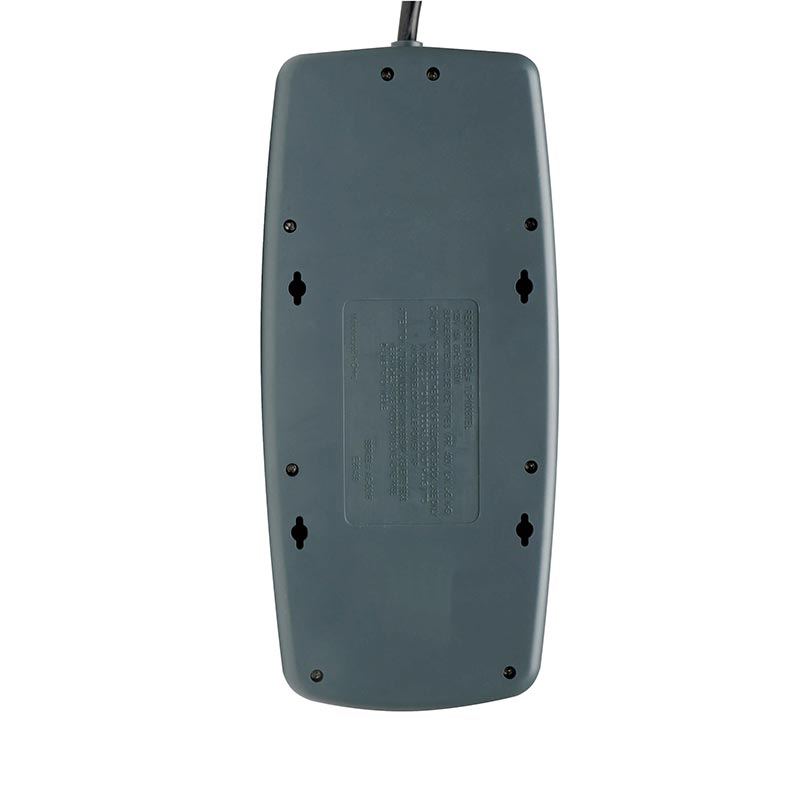

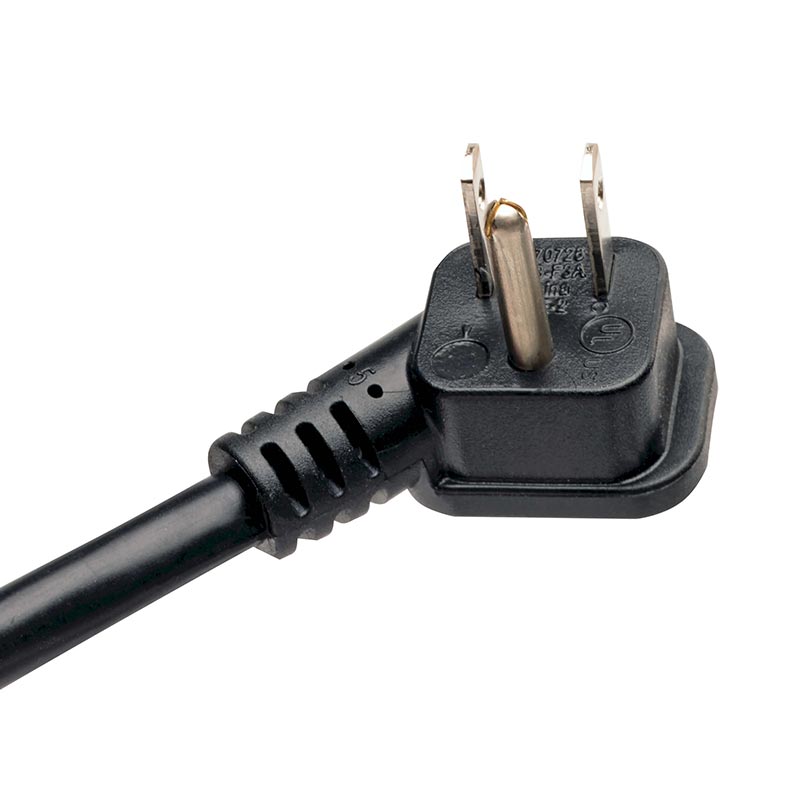

The 8-ft. (2.43 m) AC power cord allows the TLP1008TEL to reach distant outlets, while its right-angle NEMA 5-15P plug allows furniture and equipment to be placed flush against the wall to save space in your workstation. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the black plastic housing.


Technical Specifications

  • UPC Code: 037332119063
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Cord Gauge Type: 14 gauge; SJT
  • Input Cord Gauge (AWG): 14
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 120000
  • Input Plug Type: NEMA 5-15P
  • Input Cord Details: SJT
  • Input Cord Length (ft.): 8
  • Right-Angle Plug: Yes
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (10) 5-15R
  • Circuit Breaker (amps): 15
  • Overload Protection: 15A resettable circuit breaker
  • Transformer Accommodation: (8) Yes
  • Outlet Orientation: Two rows of outlets, including 4 widely spaced for transformers
  • Outlet Safety Covers Detail: Includes built-in sliding outlet safety covers
  • Diagnostic LED(s): Yes
  • Switches: Combination AC circuit breaker and two-position on/off power switch
  • Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
  • SURGE / NOISE SUPPRESSION
  • AC Suppression Joule Rating: 2395
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
  • UL1449 Let Through Rating: 400V - UL Verified
  • EMI / RFI Filtering: Up to 40 dB
  • Automatic Shut-Off: Yes
  • Telephone/DSL Protection Details: 1 line
  • Network (Ethernet) Protection: No
  • Telephone/DSL Protection: Yes
  • Material of Construction: Plastic
  • Power Cord Color: Black
  • Housing Color: Black
  • Mounting Holes or Slots: Yes
  • Slot or Hole Mount Measurement (Center to Center): 108 mm
  • Outlets Measurement (Center to Center): Between Standard Outlets = 28.4mm; Between Standard and Transformer Outlets = 56.8mm
  • Receptacle Color: Black
  • Shipping Dimensions (hwd / in.): 14.30 x 1.75 x 8.20
  • Shipping Weight (lbs.): 2.40
  • Unit Dimensions (hwd / in.): 11.800 x 5.300 x 1.800
  • Unit Weight (lbs.): 2
  • Product Certifications: CAN/CSA-C22.2 No. 226.92 (Canada); CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; UL 1449; UL 497A; UL 1363; UL Listed
  • Product Compliance: RoHS
  • Product Warranty Period (Worldwide): Lifetime limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $150,000 Ultimate Lifetime Insurance
Net Weight: 2.50 lbs
UOM: EACH
Product Type: Surge Protector, 10 Outlet, 8FT Cord
Country of Origin: CN
