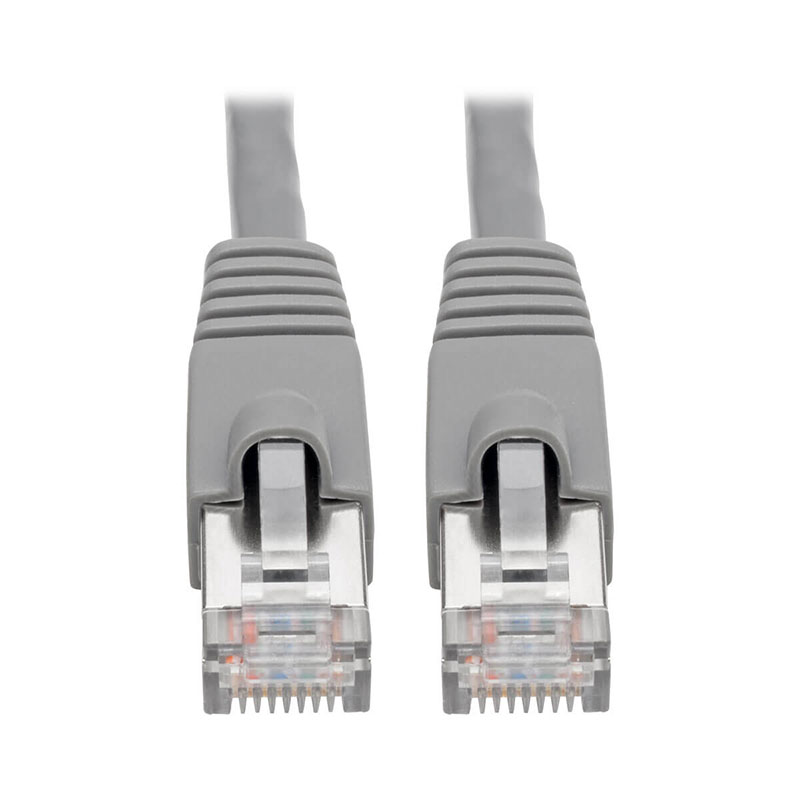

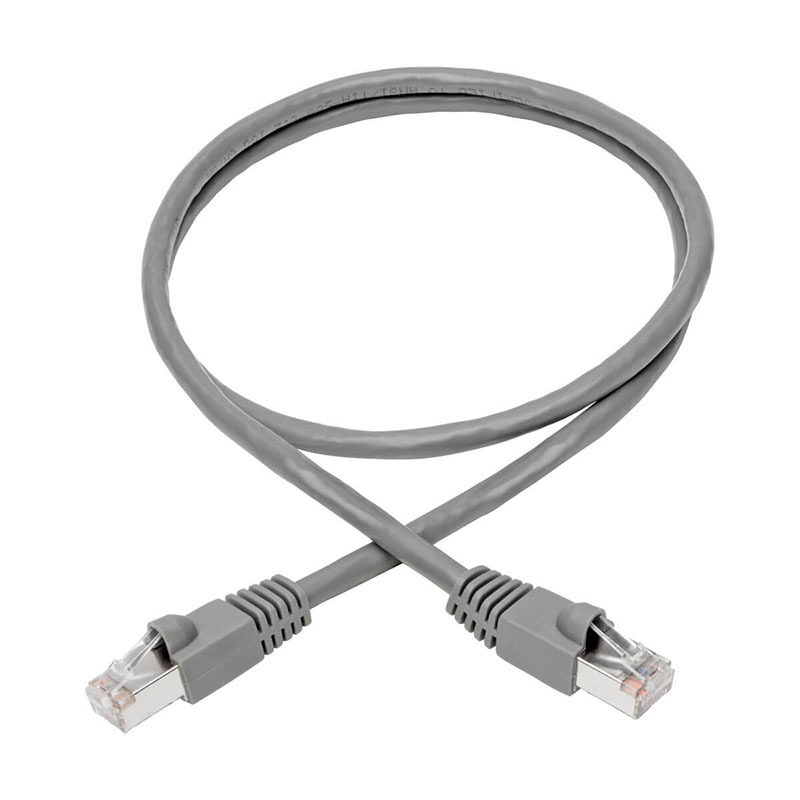

Tripp Lite, Series Cat6a, 10G, Snagless Shielded, STP, Ethernet Cable (RJ45 M/M), PoE, Gray, 3 ft. (0.91 m)

MFG #: N262-003-GY
ATECH #: TRPN262-003-GY
UPC : 037332204981
Manufacturer : Tripp Lite
If you don't have an account, Become a Reseller!

Marketing Information

Transmits 10 Gbps data with Power over Ethernet (PoE) support over 4-pair copper cable. Recommended for high-speed 10GBase-T network connections in high-density data centers and Ethernet networks.


Technical Specifications

  • UPC Code: 037332204981
  • Technology: Cat6a; PoE
  • PoE Capability: 30W (802.3at)

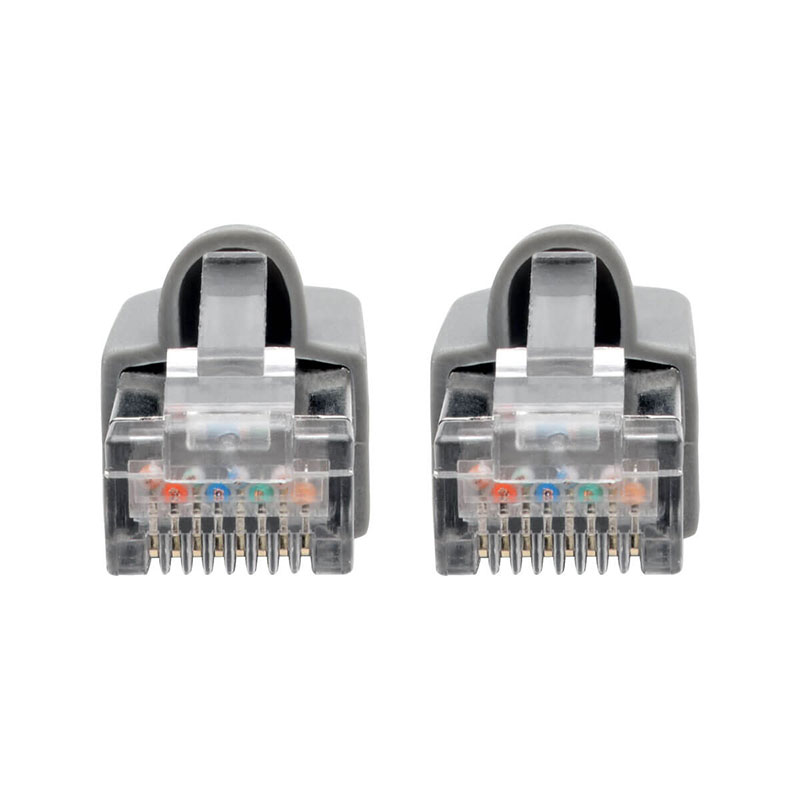

  • Side A - Connector 1: RJ45 (MALE)
  • Side B - Connector 1: RJ45 (MALE)
  • Connector Plating: Nickel
  • Contact Plating: Gold
  • PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)

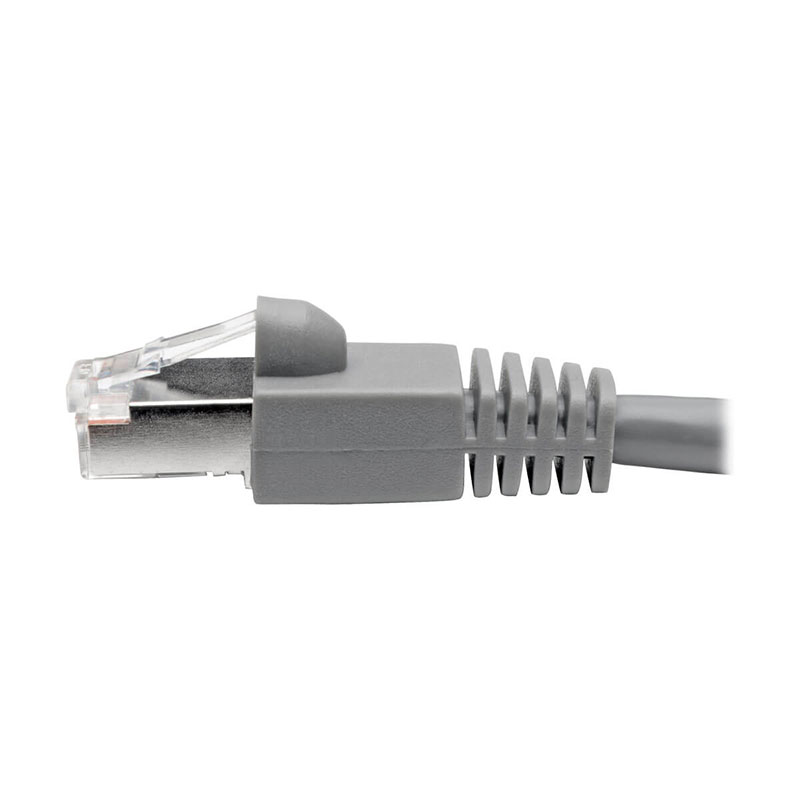

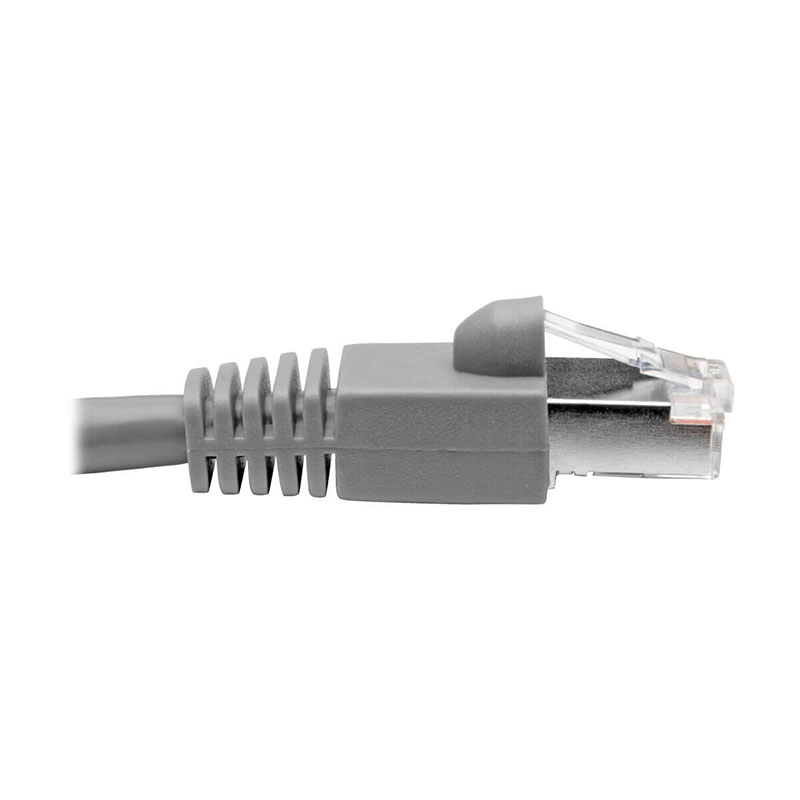

  • Connector Type: Snagless
  • Wiring Configuration: EIA/TIA 568B
  • Cable Jacket Color: Gray
  • Cable Jacket Material: PVC
  • Cable Jacket Rating: CM
  • Cable Shielding: STP
  • Cable Outer Diameter (OD): 6.2 mm
  • Number of Conductors: 4 Pair
  • Conductor Material: Stranded Copper
  • Conductor Gauge: 26 AWG
  • Cable Length (ft.): 3
  • Cable Length (in.): 36
  • Shipping Dimensions (hwd / in.): 9.00 x 7.00 x 0.50
  • Shipping Weight (lbs.): 0.10
  • Unit Dimensions (hwd / in.): 0.000 x 0.000 x 0.000
  • Operating Temperature Range: 14° to 122°F (-10° to 50°C)
  • Storage Temperature Range: 5° to 140°F (-15° to 60°C)
  • Operating Humidity Range: 0% to 90% RH, Non-Condensing
  • Storage Humidity Range: 0% to 90% RH, Non-Condensing
  • Bandwidth per TIA Standard: 500 MHz
  • Maximum Bandwidth as Tested: 600 MHz
  • Network Compatibility: 10 Gbps
  • IEEE Standards Supported: 802.3at
  • Snagless Connector: Yes
  • Product Certifications: UL Listed; cUL Listed
  • Product Compliance: CE (Europe); RoHS; IEEE 802.3at PoE+; REACH; UKCA
  • Product Warranty Period (Worldwide): Lifetime limited warranty
Net Weight: 0.00 lbs USPS OK
UOM: EACH
