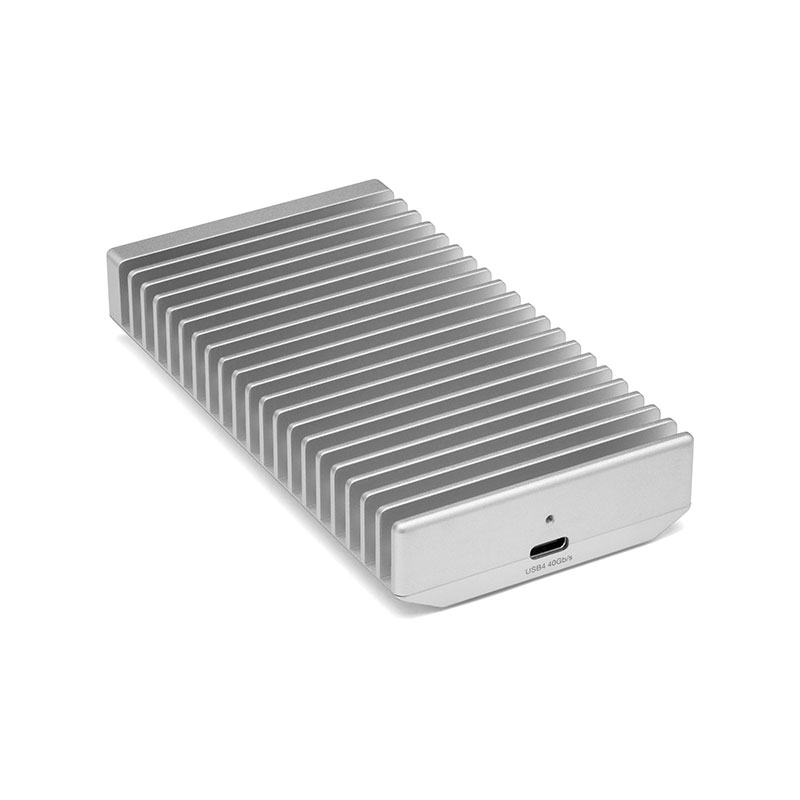

OWC Express, 1M2, 0GB,(40Gb/s), Bus-Powered, Portable ExternaL, Storage Enclosure, NVMe M.2 SSD

MFG #: OWCUS4EXP1M2
ATECH #: OWCUS4EXP1M2
UPC : 810100983765
Manufacturer : OTHER WORLD COMPUTING
If you don't have an account, Become a Reseller!

Marketing Information

Built to handle demanding needs, the Express 1M2 USB4 External SSD Enclosure from OWC / Other World Computing is designed for photo and video professionals, DITs, prosumers, performance enthusiasts, and other creative professionals. Equipped with an NVMe M.2 SSD slot, the Express 1M2 supports one M.2 2230, 2242, or 2280 SSD. Depending on your choice of SSD, data transfers speeds can reach as high as 3151 MB/s, which is fast enough for 8K raw and 4K video in slow motion as well as ProRes and other demanding codecs, plus high-resolution photos in both raw and compressed formats.


Technical Specifications

  • Number of Bays: 1

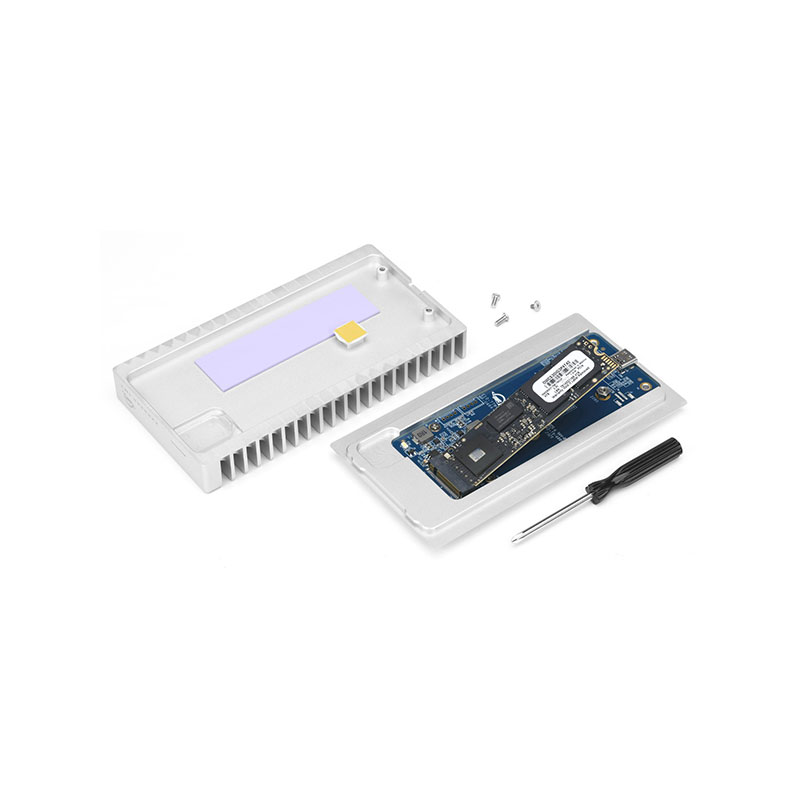

  • Drive Bays: 1 bay supporting: M.2 drives; Supports M.2 2230, M.2 2242, M.2 2280 "M Key" drives
  • Mechanisms Supported: NVMe M.2 SSD
  • Plug and Play: Yes
  • Drive Interface: M.2

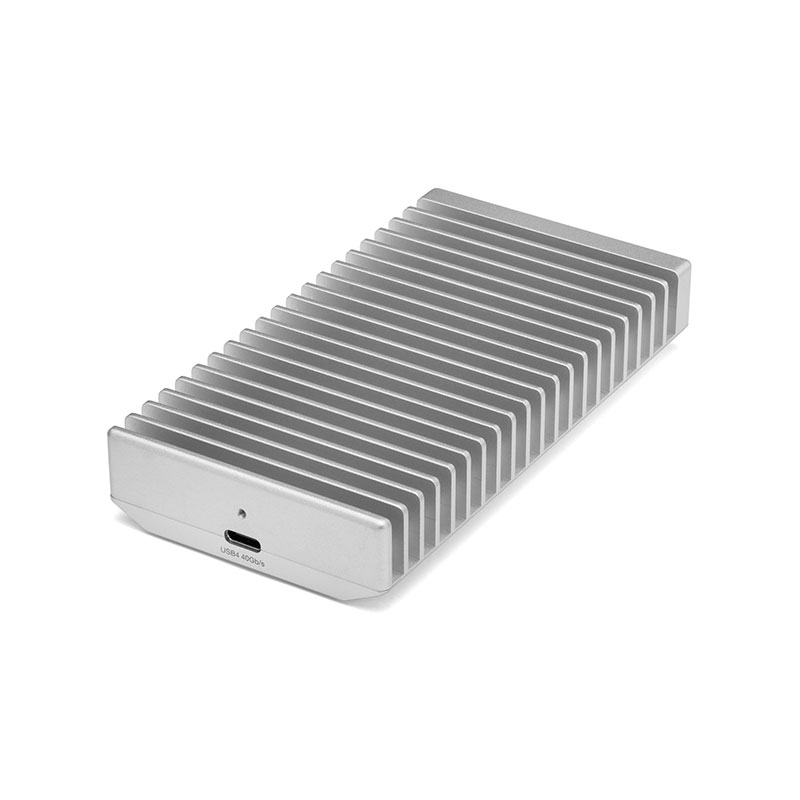

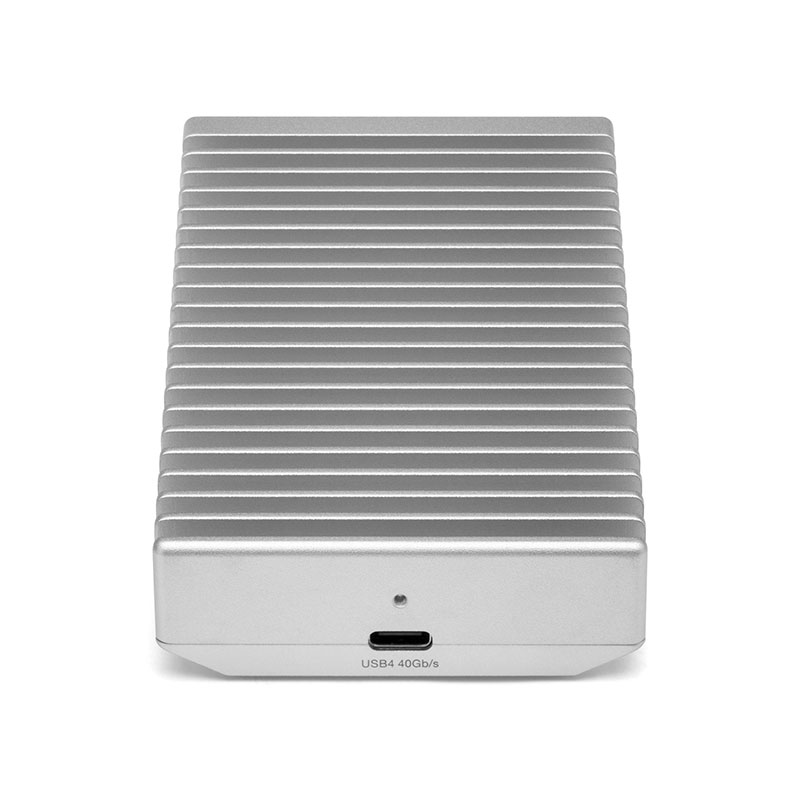

  • Device Ports: (1) Host Port - USB4 (USB-C) up to 40Gb/s (5000MB/s)
  • Data Transfer Rate (Maximum): USB4 : Up to 40 Gb/s (or 5000 MB/s)
  • Chipset: USB: ASM2464PD
  • Contact Start Stops: Varies depending on drive mechanism installed
  • Host Port Requirements: USB4 or Thunderbolt (USB-C) port
  • Mac OS Compatibility: macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11.x Big Sur; macOS 12.x Monterey; macOS 13.x Ventura; macOS 14.x Sonoma
  • PC OS Compatibility: Windows 10 32-bit Edition; Windows 10 64-bit Edition; Windows Server 2016; Windows 11
  • Linux OS Compatibility: Yes
  • Mobile OS Compatibility: iPadOS 13; iPadOS 14; iPadOS 15; iPadOS 16; iPadOS 17; iOS 17; Android 13.x
  • Other OS Compatibility: Chrome OS; ChromeOS version 102 and later
  • Driver Required: No
  • External Power Adapter: No
  • Power Supply: Bus-powered
  • Security Slot: No

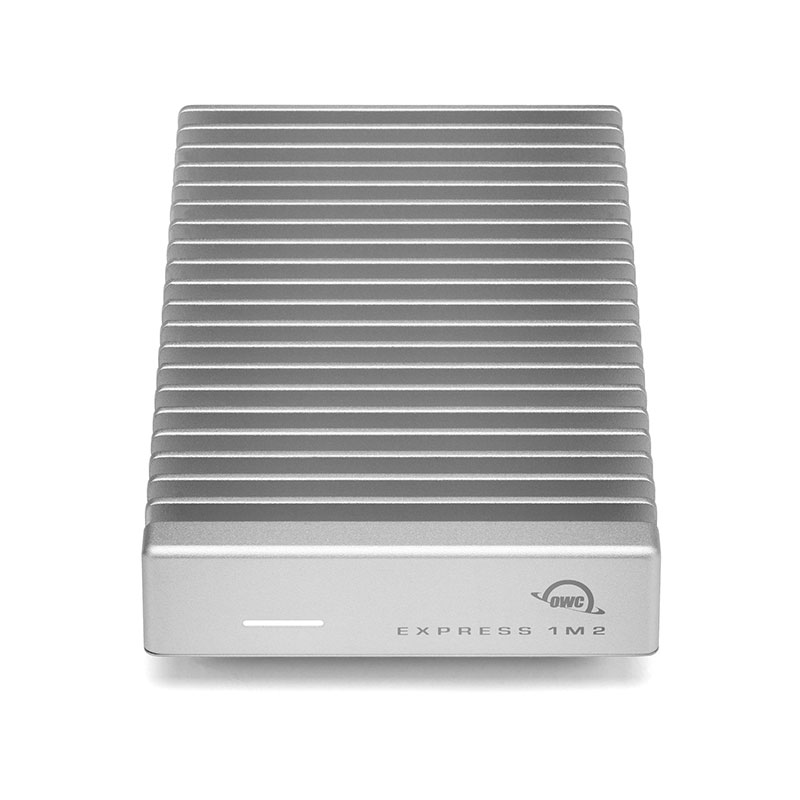

  • Power/Activity LED: Yes
  • Housing Color: Silver
  • Housing Material: Aluminum

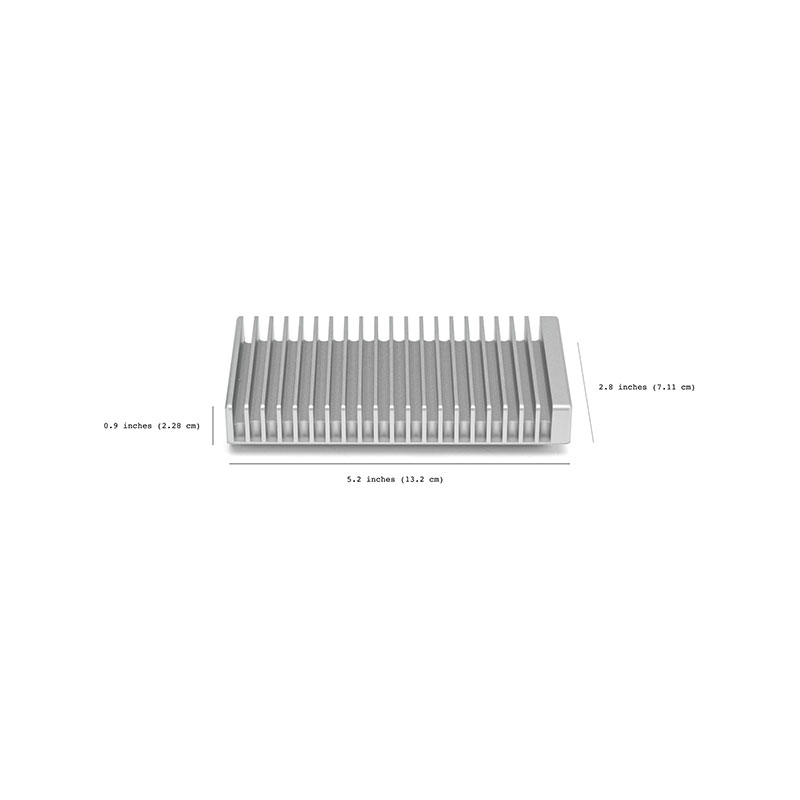

  • Dimensions: Height: 2.3 cm (0.9 in); Length: 13.2 cm (5.2 in); Width: 7.0 cm (2.8 in)
  • Weight: 253.0 g (0.56 lbs)
  • Certifications: BSMI; CE; FCC; RCM; VCCI
  • Reach Certification: Yes
  • Country of Origin: Taiwan
  • TAA Compliance: Yes
  • Ambient Temperature: Operating: 41°F to 95°F (5°C to 35°C); Non-Operating: -4°F to 140°F (-20°C to 60°C)
  • Humidity: Operating: 8% to 90% non-condensing; Non-Operating: 5% to 95% non-condensing
Net Weight: 0.80 lbs USPS OK
UOM: EACH
Product Type: SSD ENCLOSURE
Warranty: 2 Year OWC Limited Warranty
Pack Dimensions: 2.00"h x 6.50"w x 5.10"l
Country of Origin: TW
