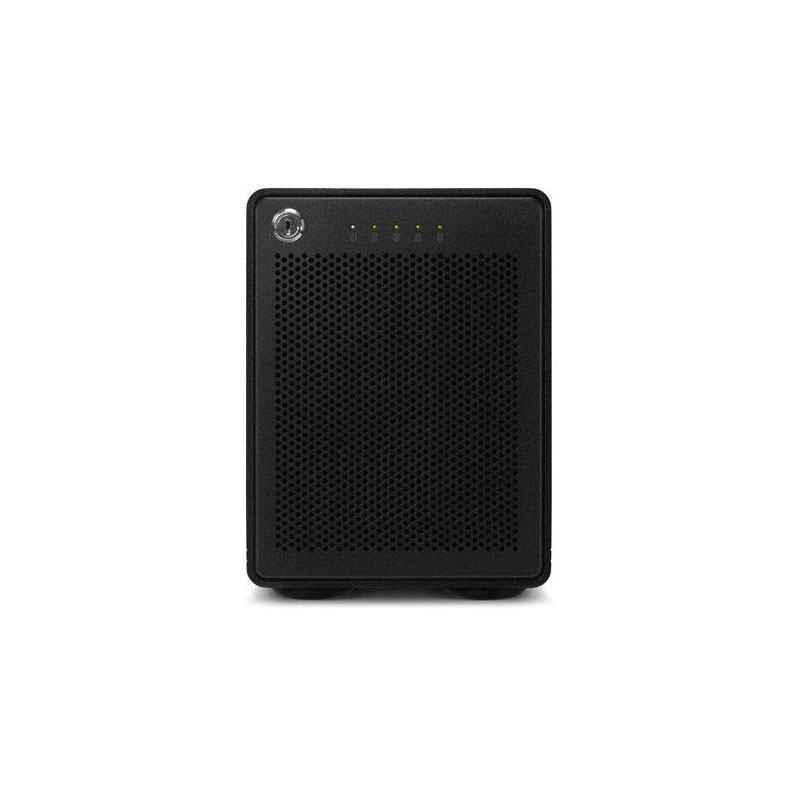

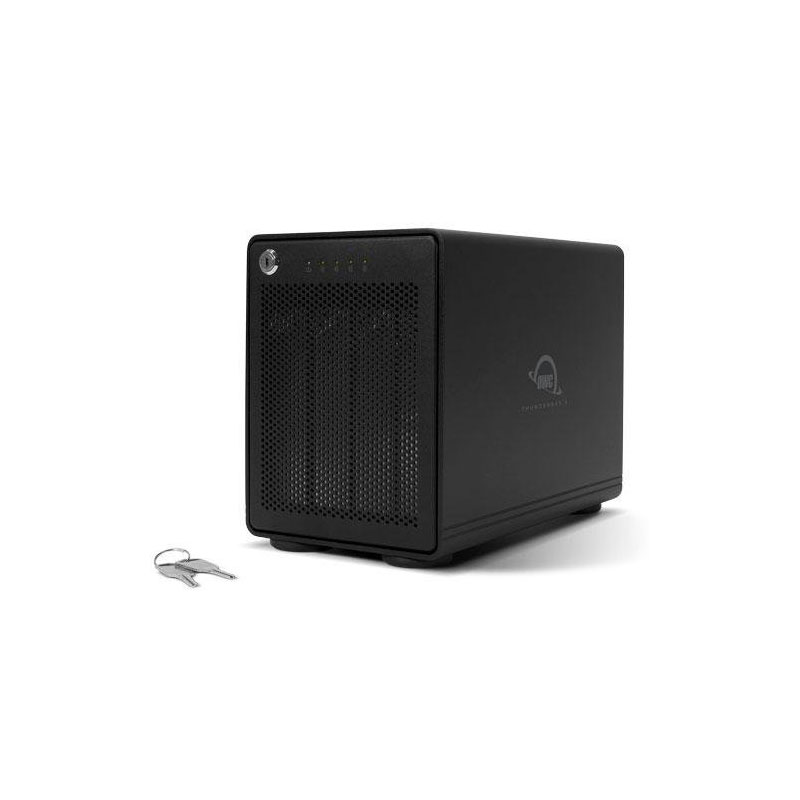

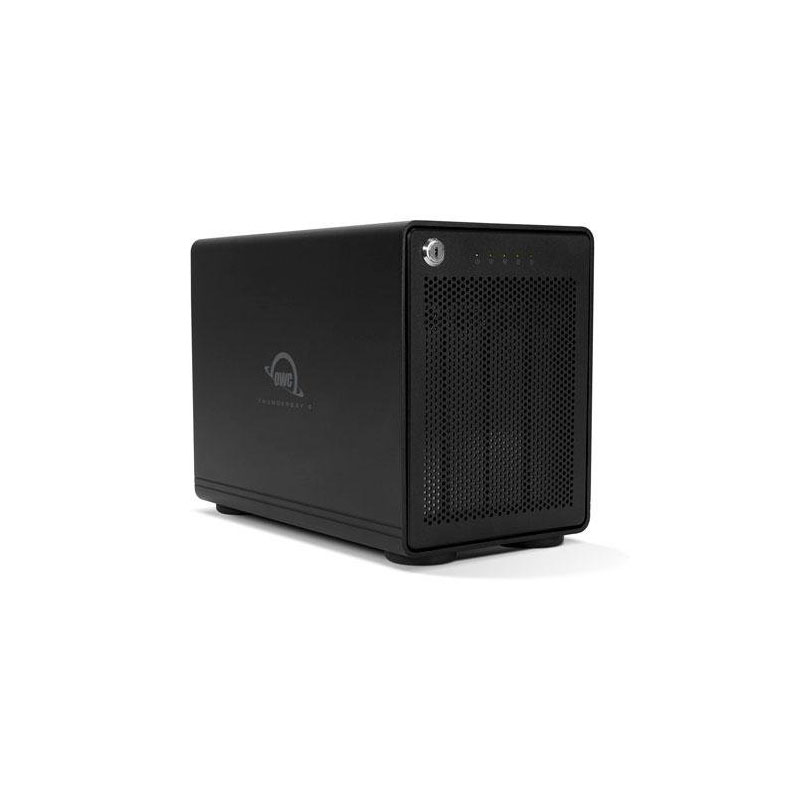

OWC Thunderbay 4, 48TB, RAID 5, 4-Drive, Dual Thunderbolt 3 Ports, Cable Included

MFG #: OWCTB3SRE48.0S
ATECH #: OWCTB3SRE48.0S
UPC : 810586030991
Manufacturer : OTHER WORLD COMPUTING
If you don't have an account, Become a Reseller!

Marketing Information

This ThunderBay 4 48TB 4-Bay Thunderbolt 3 RAID Array from OWC / Other World Computing is pre-configured with four 12TB HGST Ultrastar Enterprise-grade drives set up in RAID 5 via SoftRAID XT software. With two Thunderbolt 3 ports featuring transfer speeds of up to 40 Gb/s, it's suitable for a wide variety of workflows such as video and photo editing, audio production, and much more. Actual read and write performance in RAID 5 are around 453 and 456 MB/s respectively. If needed, Thunderbolt 3 connectivity also supports daisy-chaining with up to six devices as well as DisplayPort-equipped displays. Using the SoftRAID XT software, you can reconfigure these drives from RAID 5 to alternate configurations including RAID 0, 1, 4, 1+0, and JBOD.


Technical Specifications

  • Total Capacity: 48.0TB
  • Total Solution Cache Size: 1024 MB
  • Standard Mechanism: (4) 12.0TB Toshiba MG07ACA Series 7,200RPM Enterprise Class Hard Disk Drive with 256 MB cache: *OWC reserves the right to replace or upgrade to equivalent or better components.
  • Hot Swap Support: Yes
  • Chipset: SATA Controller: (2) ASM1062; Thunderbolt 3: (1) Intel DSL6540
  • Drive Interface: SATA 6.0 Gb/s
  • Rotational Speed: 7,200RPM
  • Data Transfer Rate (Maximum): Thunderbolt 3 : Up to 40 Gb/s (or 5000 MB/s)
  • Plug and Play: Yes
  • RAID Capable: Yes
  • Default RAID Level: RAID 5
  • RAID Levels Supported: JBOD; RAID 0; RAID 1; RAID 4; RAID 5; RAID 10
  • RAID Features: Software RAID
  • Benchmark Speed, Read (Max): Up to 1047 MB/s
  • Benchmark Speed, Write (Max): Up to 1046 MB/s
  • Contact Start Stops: 600,000
  • Mac OS Compatibility: macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11.x Big Sur; macOS 12.x Monterey; macOS 13.x Ventura
  • PC OS Compatibility: Windows 10 64-bit Edition; Windows 11
  • Other Requirements: SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time.
  • Host Port Requirements: Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)
  • Power Supply: Internal UL-listed universal auto-switching power supply
  • AC Input: 100-230V
  • External Power Adapter: No
  • Number of Bays: 4

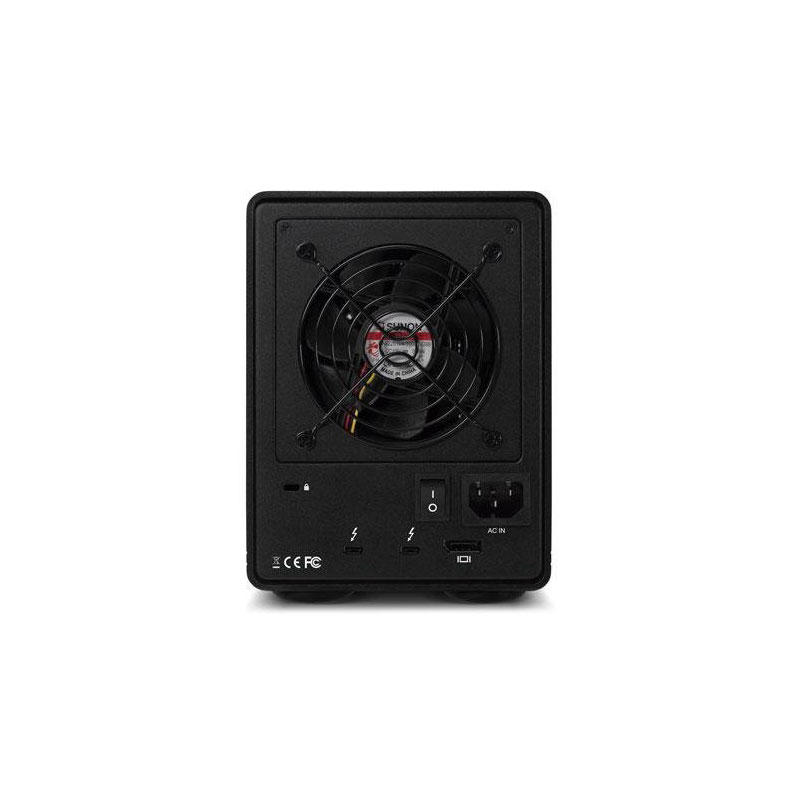

  • Device Ports: (1) Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s); (1) Thunderbolt 3 (USB-C) Port; (1) DisplayPort Port
  • Cooling: (1) 92mm Temperature-controlled cooling fan
  • Security Slot: Yes
  • Power Button: Yes
  • Power/Activity LED: Yes
  • Housing Color: Black
  • Housing Material: Aluminum
  • Dimensions: Height: 17.7 cm (7.0 in); Length: 24.5 cm (9.6 in); Width: 13.5 cm (5.3 in)
  • Ambient Temperature: Operating: 50°F to 95°F (10°C to 35°C): Non-Operating: -40°F to 149°F (-40°C to 65°C)
  • Altitude: Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft); Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
  • Humidity: Operating: 8% to 90% non-condensing: Non-Operating: 5% to 95% non-condensing
Net Weight: 16.55 lbs
UOM: EACH
Product Type: Desktop Storage
Capacity: 48TB
Warranty: 5 Year OWC Limited Warranty
Pack Dimensions: 10.90"h x 15.60"w x 14.30"l
Country of Origin: CN
