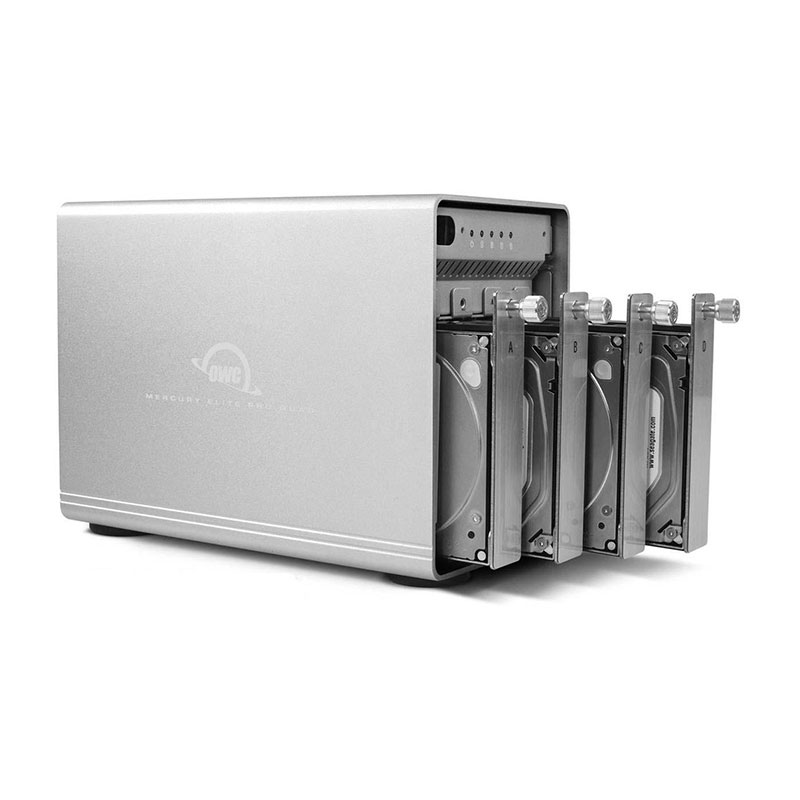

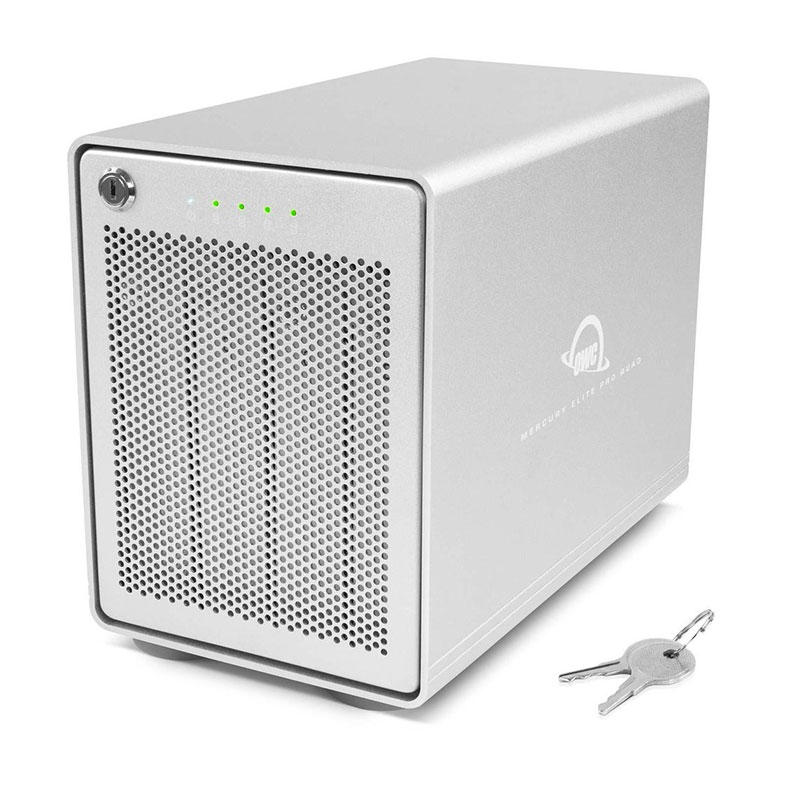

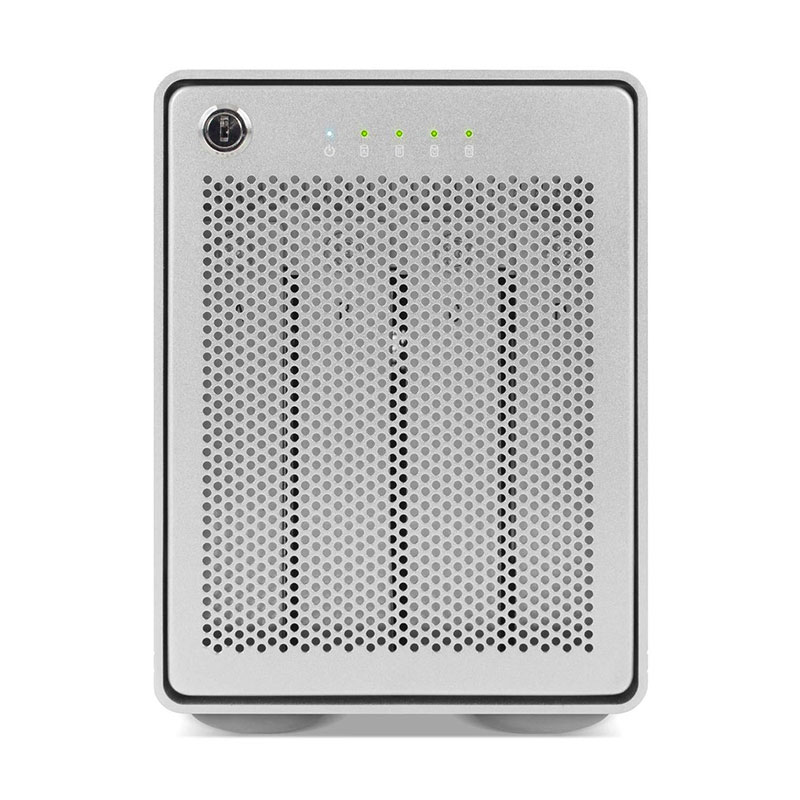

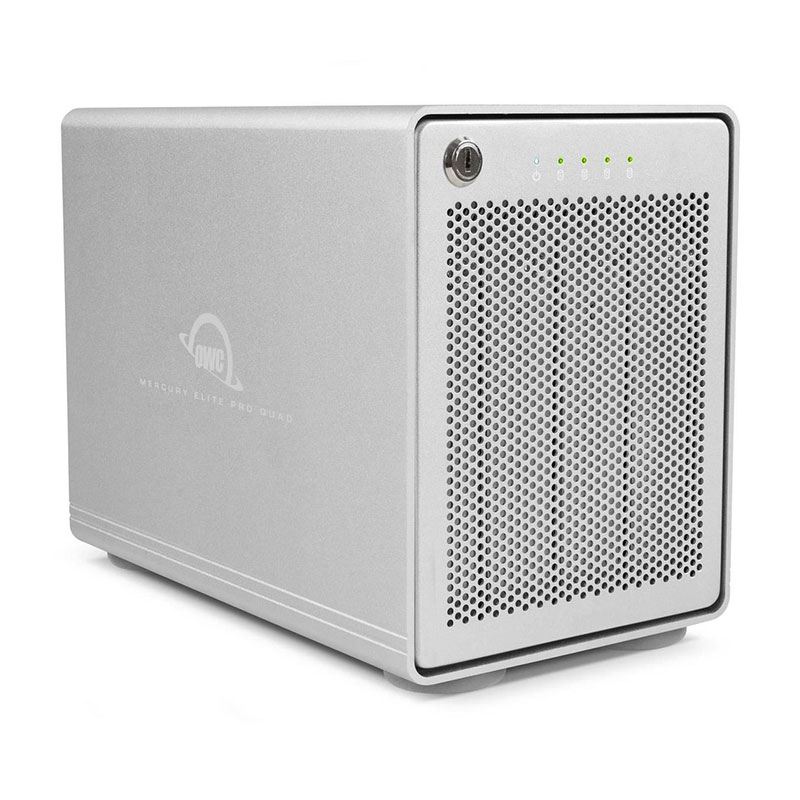

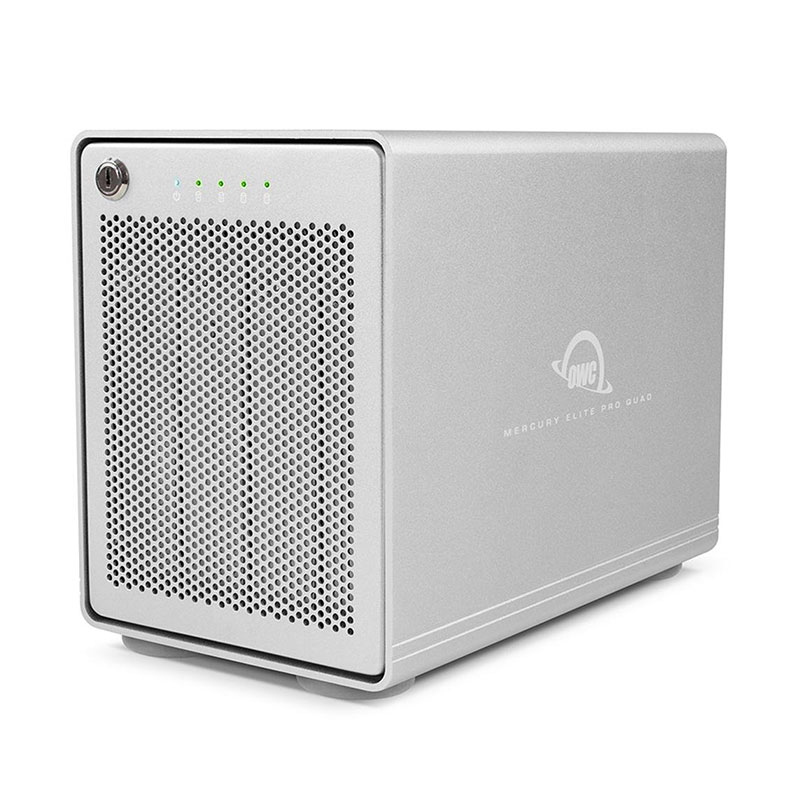

OWC Mercury Elite Pro Quad, 24TB, RAID 5, 4 Bay

MFG #: OWCMEQCTSRT24
ATECH #: OWCMEQCTSRT24
UPC : 812437029277
Manufacturer : OTHER WORLD COMPUTING
If you don't have an account, Become a Reseller!

Marketing Information

Add 24TB of USB 3.1 Gen 2 Type-C storage to your compatible Windows or Mac system with the Mercury Elite Pro Quad 24TB 4-Bay USB 3.1 Gen 2 Type-C RAID Array (4 x 6TB) from OWC / Other World Computing. This array is preconfigured as RAID 5 via included SoftRAID XT software. 24TB also provides you with plenty of space to store files such as music, photos, movies, and documents. This array provides transfer speeds up to 947 MB/s.


Technical Specifications

  • Total Capacity: 24.0TB
  • Total Solution Cache Size: 512 MB

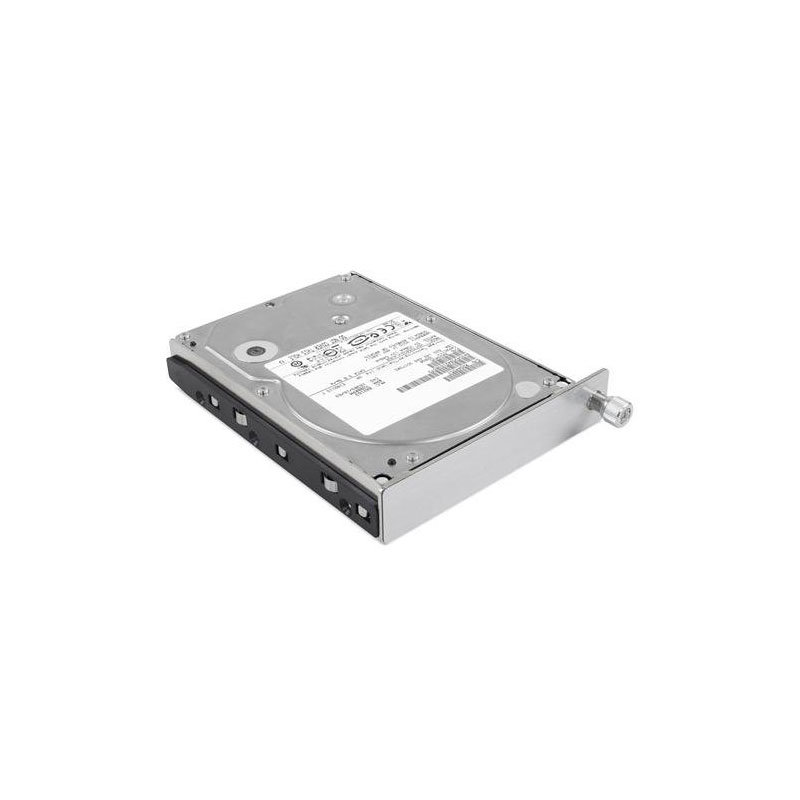

  • Standard Mechanism: (4) 6TB Toshiba X300 7,200RPM Hard Disk Drive with 128 MB cache; *OWC reserves the right to replace or upgrade to equivalent or better components.
  • Hot Swap Support: Yes
  • Chipset: USB 3.1 Gen 2: (1) Via Labs VLI-822; SATA: (4) ASMedia ASM-235CM
  • Certifications: CE; FCC
  • Data Transfer Rate (Maximum): USB 3.2 Gen 2 : Up to 10 Gb/s (or 1250 MB/s)
  • Plug and Play: Yes
  • Reach Certification: Yes
  • RAID Capable: Yes
  • RAID Levels Supported: RAID 0; RAID 1; JBOD; RAID 4; RAID 5; RAID 0+1
  • RAID Features: Software RAID
  • MTBF (Mean Time Between Failures): Varies depending on drive mechanism installed
  • Mac OS Compatibility: macOS 10.14 Mojave; macOS 10.13 High Sierra; macOS 10.12 Sierra; OS X 10.11 El Capitan; OS X 10.10 Yosemite; OS X 10.9 Mavericks; Mac OS X 10.8 Mountain Lion; Mac OS X 10.7 Lion; Mac OS X 10.6 Snow Leopard; macOS 10.15 Catalina; macOS 11.x Big Sur; macOS 12.x Monterey; macOS 13.x Ventura
  • PC OS Compatibility: Windows 7 32-bit Edition; Windows 7 64-bit Edition; Windows Home Server 2011; Windows 8 32-bit Edition; Windows 8 64-bit Edition; Windows 8.1 32-bit Edition; Windows 8.1 64-bit Edition; Windows Server 2012; Windows 10 32-bit Edition; Windows 10 64-bit Edition; Windows Server 2016; Windows 11
  • Other Requirements: SoftRAID is compatible with Windows 10, or macOS 10.12 or later. Apple Silicon M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer. Additional seats available.
  • Host Port Requirements: USB (USB-C or USB-A1) or Thunderbolt (USB-C) port
  • Power Supply: Internal UL-listed universal auto-switching power supply
  • AC Input: 100-240V, 50-60Hz
  • DC Output: +12V, 10A
  • Wattage: 120W
  • Number of Bays: 4

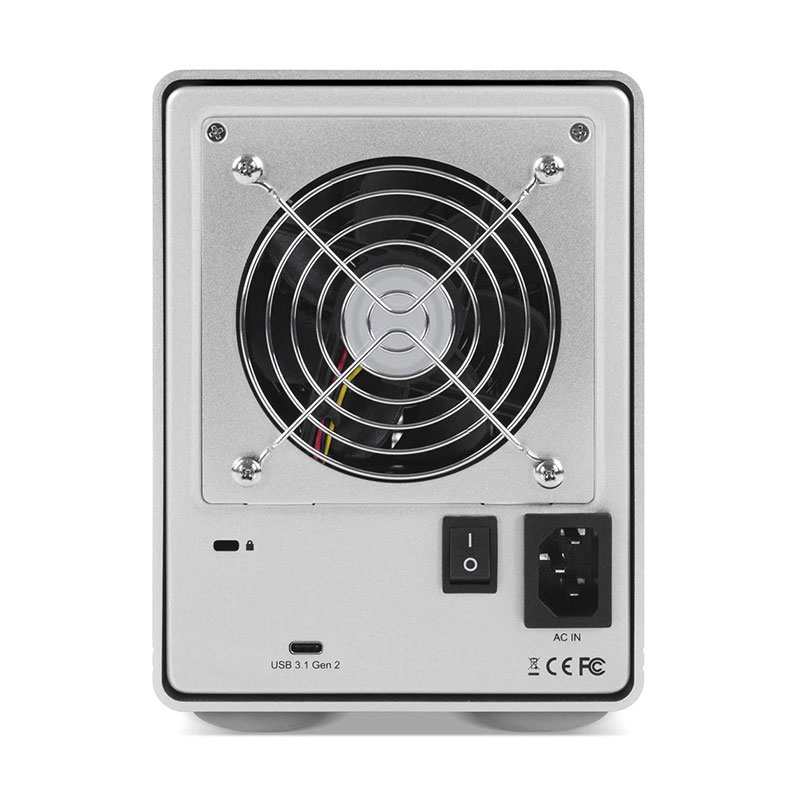

  • Device Ports: (1) Host Port - USB 3.2 Gen 2 Type-C up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
  • Cooling: (1) 92mm Temperature-controlled cooling fan
  • Security Slot: Yes
  • Power Button: Yes
  • Power/Activity LED: Yes
  • Housing Color: 0
  • Housing Material: Aluminum
  • Dimensions: Height: 18.5 cm (7.3 in); Length: 24.0 cm (9.4 in); Width: 13.5 cm (5.3 in)
  • Weight: 3.6 kg (7.94 lbs)
  • Ambient Temperature: Operating: 32°F to 104°F (0°C to 40°C); Non-Operating: -4°F to 158°F (-20°C to 70°C)
  • Altitude: Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft); Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Net Weight: 10.00 lbs
UOM: EACH
Product Type: Hard Drive
Warranty: 3 Year
Country of Origin: CN
