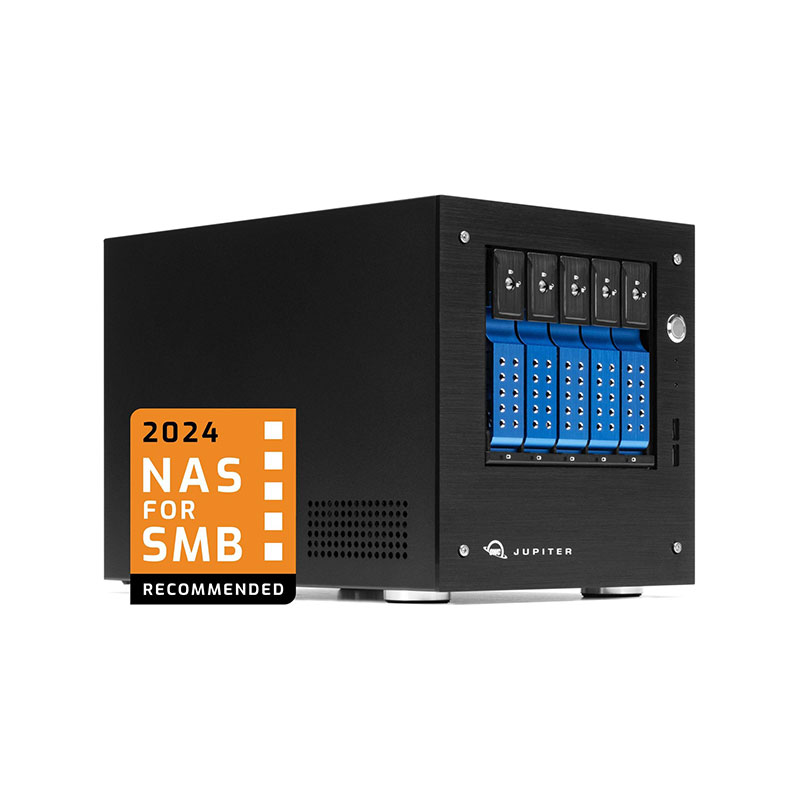

OWC, 80TB, Jupiter Mini, 5-Drive, Desktop, Network Attached Storage (NAS) Solution

MFG #: JMIN0535R080H2
ATECH #: JMIN0535R080H2
UPC : 810100982744
Manufacturer : OTHER WORLD COMPUTING
If you don't have an account, Become a Reseller!

Marketing Information

Designed for file sharing in small business, remote work, education, research, and creative content, the Jupiter Mini 80TB 5-Bay NAS Server from OWC / Other World Computing is a secure and centralized desktop-sized NAS. Built with a 16TB Toshiba MG08ACA 7200 rpm Enterprise hard drive in each of its five SATA III 3.5" drive bays, the Jupiter Mini features a capacity of 80TB as well as a 2.2 GHz Intel Xeon D-1518 4-Core processor and 32GB of 2666 MHz ECC Registered RAM. Connect to your network using the two 10 Gigabit Ethernet or two Gigabit Ethernet ports, while additional compatible peripherals may be connected using a VGA port or two USB-A 2.0 ports. Also available are two USB-A 3.2 Gen 1 ports for a keyboard/mouse or an OS update, plus a Gigabit Ethernet IPMI port for remote management. For storage expansion via an optional 12 Gb/s SAS PCIe HBA, there is a PCIe 3.0 x16 slot.


Technical Specifications

  • CPU: Quad-Core: Up to 2.2 GHz
  • Processor: Intel Xeon D-1518
  • Total Installed Memory: 32 GB ECC 2666 MHz DDR4
  • Maximum Memory Capacity: 64 GB
  • Storage Capacity: 80 TB
  • Included Drives: 5x 16 TB 3.5" HDD
  • Cache Memory per Drive: 256 MB
  • Initial RAID Configuration: RAID Z1
  • Interface: SATA III
  • Rotational Speed: 7200 rpm

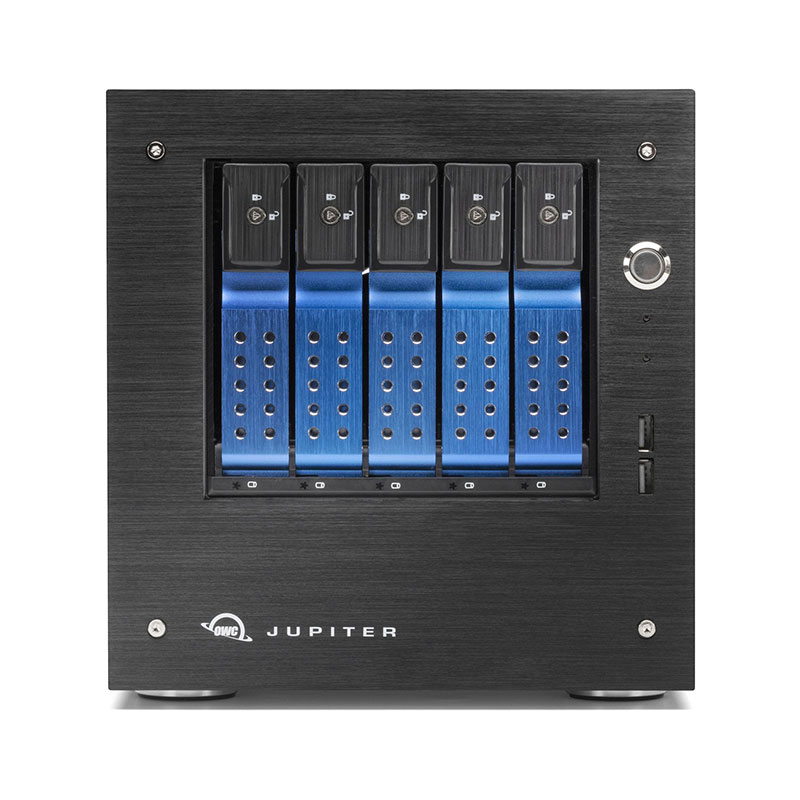

  • Number of Bays: 5x 3.5" SATA III

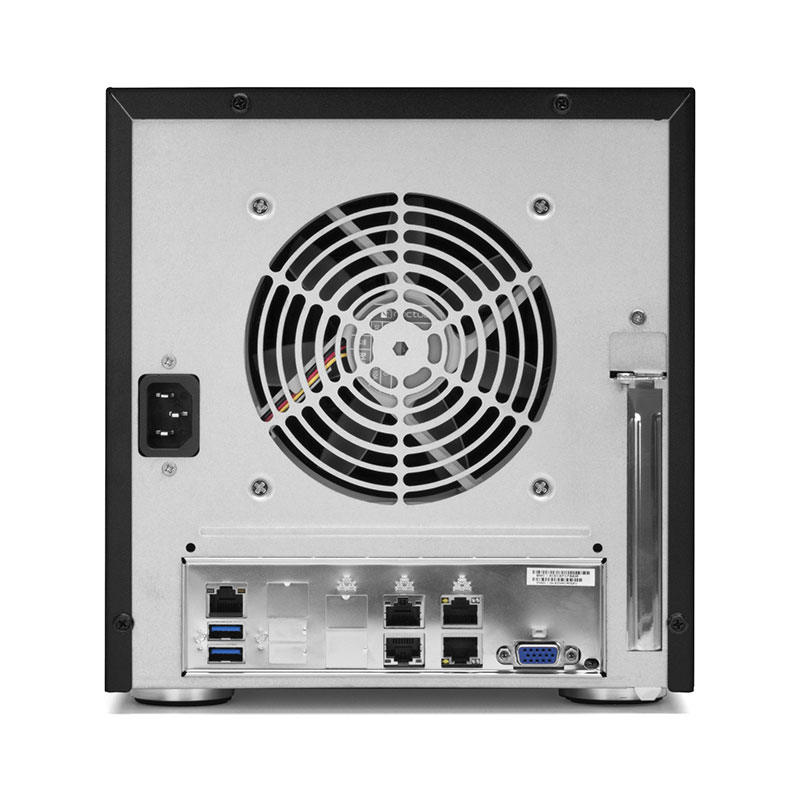

  • Inputs/Outputs: 2x RJ45 10GbE; 3x RJ45 Gigabit Ethernet; 1x VGA; 2x USB-A 3.0 / 3.1/3.2 Gen 1; 2x USB-A 2.0
  • Form Factor: Desktop
  • RAID Support: RAID Z0/Z1/Z3/ZFS Mirror

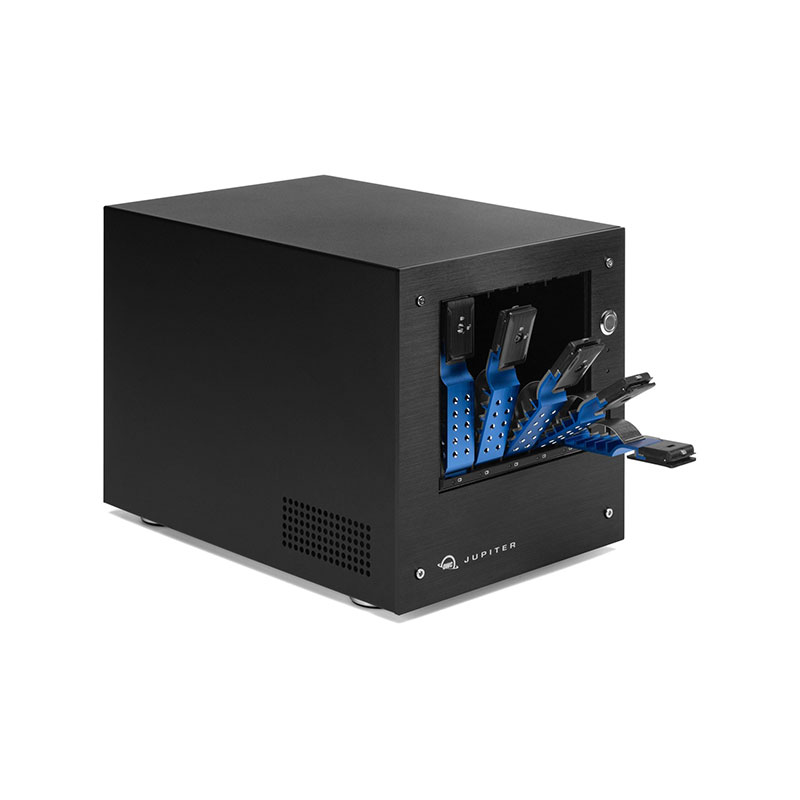

  • Hot-Swap Support: Yes
  • PCI Expansion: 1x PCIe 3.0 x16
  • Link Aggregation and Failover Support: Yes
  • Supported Protocols: CIFS/SMB; IPv4; IPv6; NFS; SFTP; TFTP; WebDAV; iSCSI
  • Installed Operating System: No
  • Supported File Systems: EXT2, FAT, NTFS, ZFS
  • OS Compatibility: macOS; Windows 11; Windows 10 (32-/64-Bit); Windows Server 2003; Windows Server 2003 R2; Windows Server 2008; Windows Server 2008 R2; Windows Server 2012; Windows Server 2012 R2; Windows Server 2016; Chrome OS; Linux; FreeBSD
  • Mobile App Compatible: No
  • Security Features: Lockable Bay Door
  • Color: Black
  • Audible Alarm: No
  • Cooling: 1x Fan
  • Dimensions: 12.8 x 8.9 x 8.7" / 32.5 x 22.6 x 22.1 cm
  • Weight: 34.8 lb / 15.8 kg
  • Package Weight: 28.505 lb
  • Box Dimensions (LxWxH): 21.6 x 16.6 x 16"
Net Weight: 35.05 lbs
UOM: EACH
Product Type: Network Attached Storage
Capacity: 80TB
Warranty: 3 Year OWC Limited Warrnaty
Pack Dimensions: 8.90"h x 12.80"w x 8.70"l
